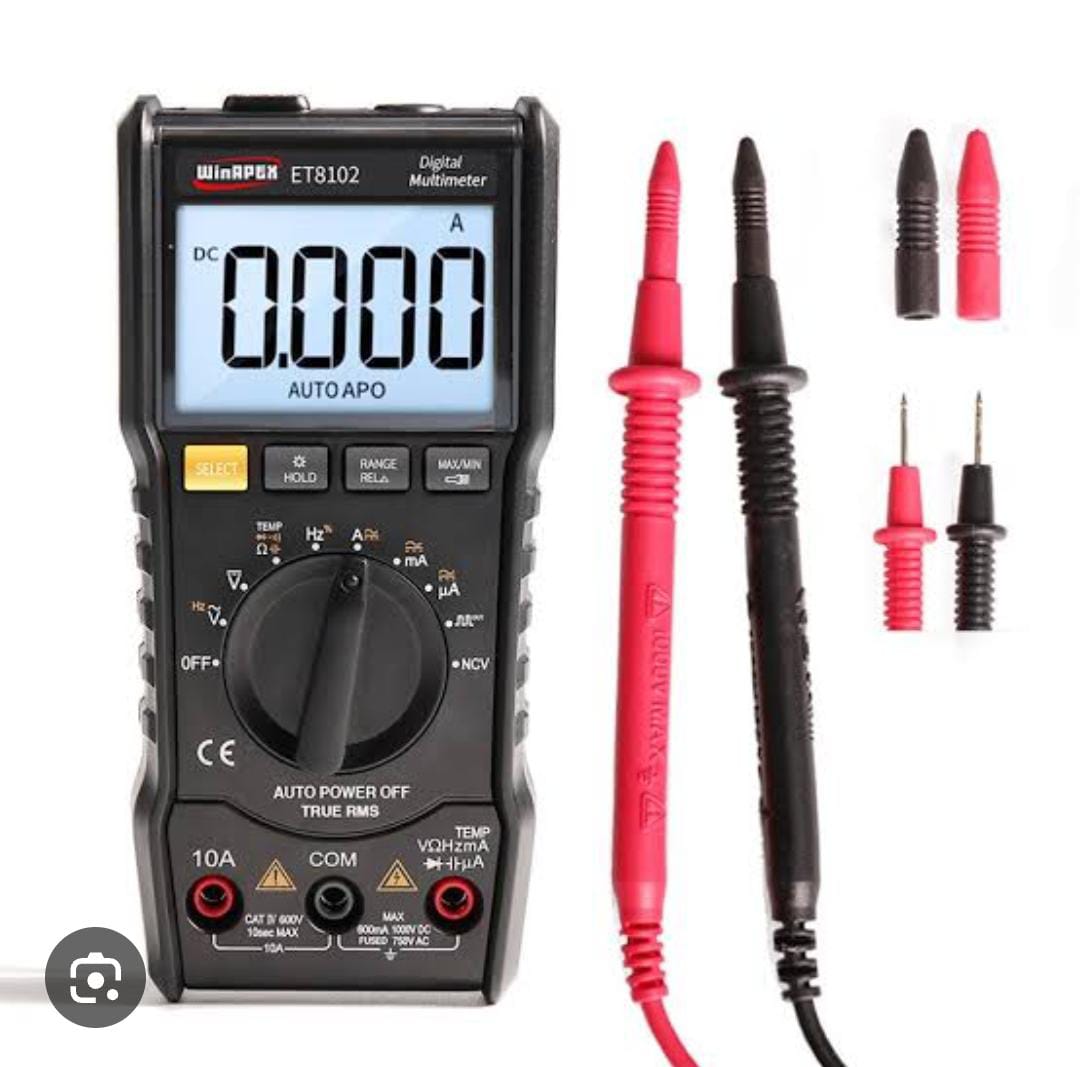

Digital Multimeter ET8102 True RMS 1000V 10A Voltmeter Ammeter
The Digital Multimeter ET8102 True RMS 1000V 10A Voltmeter Ammeter is a feature-rich handheld measuring instrument suitable for electricians, electronics technicians, engineers, and DIY users. Designed with True RMS measurement technology, it provides accurate AC readings even when measuring non-sinusoidal waveforms, making it ideal for modern electrical systems.
Equipped with a 5999-count backlit LCD, the ET8102 supports auto-ranging operation and measures DC/AC voltage up to 1000V, DC/AC current up to 10A, resistance, capacitance, frequency, duty cycle, and temperature. It also features NCV (Non-Contact Voltage) detection, diode testing, continuity buzzer, MAX/MIN recording, data hold, flashlight, and automatic power-off for greater convenience.
Its compact pocket-sized design makes it easy to carry while maintaining the functionality expected from a professional multimeter. Whether you’re diagnosing electrical faults, testing electronic components, servicing industrial equipment, or performing automotive maintenance, the ET8102 offers dependable performance and a comprehensive set of measurement functions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ET8102 |
| Product Type | True RMS Digital Multimeter |
| Display | 5999 Counts Backlit LCD |
| Measurement Type | Auto Range |
| DC Voltage | 6V, 60V, 600V, 1000V |
| AC Voltage | 6V, 60V, 600V, 750V |
| DC Current | Up to 10A |
| AC Current | Up to 10A |
| Resistance | Up to 40MΩ |
| Capacitance | Up to 30mF |
| Frequency | 10Hz to 10MHz |
| Temperature | -20°C to 1000°C |
| True RMS | Yes |
| NCV Detection | Yes |
| Duty Cycle | Yes |
| Diode Test | Yes |
| Continuity Test | Audible Buzzer |
| Data Hold | Yes |
| MAX/MIN Function | Yes |
| Flashlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Over Range Indication | Yes |
| Power Supply | 2 × AAA Batteries |
| Dimensions | Approx. 142 × 70 × 32 mm |
| Weight | Approx. 187 g |
Applications
- Electrical installation and maintenance
- Electronics repair and troubleshooting
- Industrial equipment testing
- Automotive electrical diagnostics
- Battery and power supply testing
- Frequency and duty cycle measurement
- Temperature measurement
- Home appliance servicing
- Educational laboratories
- DIY electronics projects
Precautions
- Select the correct measurement mode before connecting the probes.
- Never measure voltage while the meter is set to a current range.
- Use the correct input terminals for high-current measurements.
- Do not exceed the maximum input ratings of 1000V DC, 750V AC, or 10A current.
- Disconnect power before measuring resistance, capacitance, or continuity.
- Discharge capacitors before testing them.
- Replace batteries when the low-battery indicator appears.
- Inspect the test leads before each use and replace damaged probes immediately.
- Store the multimeter in a dry environment away from excessive heat and moisture.
