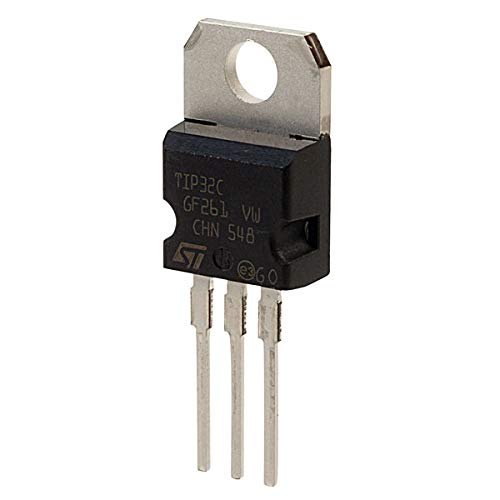

TIP32C Bipolar PNP Transistor

The TIP32C is a general-purpose PNP BJT designed for applications requiring moderate power and current handling. Rated for up to 100V collector-emitter voltage and 3A collector current, this transistor performs reliably in a variety of analog and digital circuits.

Housed in a TO-220 case, it allows for effective heat dissipation when used with a heatsink. It is widely implemented in power amplification, linear regulators, and medium-power switching circuits, thanks to its high gain and thermal stability.

🛠 Technical Details

💡 Use Cases & Applications

• 🔊 Audio Power Amplifiers
  Commonly used in class AB amplifier output stages to drive speakers or analog loads.

• ⚡ Linear Power Supplies
  Functions well in the pass element of linear voltage regulators, especially when paired with control ICs like LM723CN.

• 🔁 Power Switching Applications
  Suitable for medium-current switching, such as relay drivers or actuator control in industrial and hobby circuits.

• 🧠 Analog Signal Circuits
  Can be used in general analog circuit designs, such as current mirrors or biasing stages in instrumentation.

• 🛠️ Educational and Prototyping Projects
  A go-to choice in academic labs and DIY prototyping involving transistor-based switching logic.

🛠️ Pair With

• 🔩 Electronic Components – Capacitors, resistors, diodes

• 🔧 Tools & Accessories – Soldering tools, holders, and meters

• 🔋 Power Supplies – Linear and switching regulators

🎥 YouTube Tutorial

📺 How to Use TIP32C for Power Amplification & Switching
👉 Watch Video

⚠️ Precautions & Tips

• 🌡️ Use with a heatsink to maintain safe operating temperatures under high current loads.

• 🧯 Always use a flyback diode when driving inductive loads like relays or motors.

• 📐 Check for correct polarity when soldering; it’s a PNP transistor.

• ⚙️ Avoid operating near max ratings to extend lifespan and reliability.
