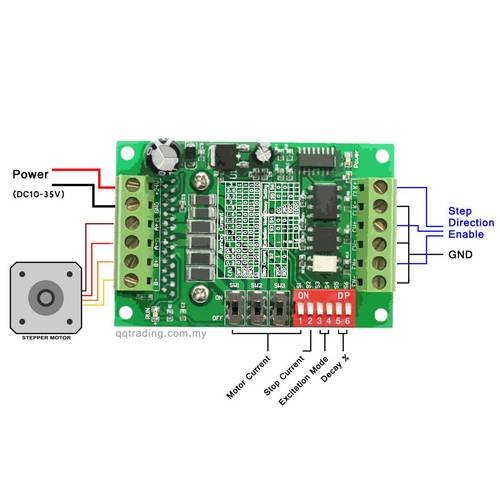

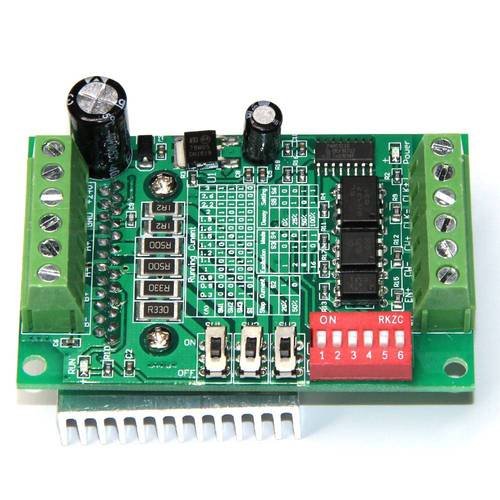

TB6560 3A CNC Router 1 Axis Stepper Motor Driver Board

The TB6560 3A CNC Router 1 Axis Stepper Motor Driver Board is a robust and efficient single-axis stepper motor controller, widely used in CNC routers, engraving machines, 3D printing, and DIY robotics projects. Designed for precise motion control, it delivers a powerful 3A output current, supports microstepping, and ensures low-noise, low-vibration performance.

This board is compatible with NEMA 17 and NEMA 23 motors and can be controlled using Arduino, Raspberry Pi, or PC-based CNC software like Mach3. The integrated optical isolation, over-current protection, and built-in heat sink make it a reliable choice for both beginners and professionals in motion control and automation.

Pair it with a Power Supply, Arduino board, or motion sensor to build CNC engraving machines, robotic sliders, or DIY pan-tilt systems. All accessories are available in our Electronics Components section.

🔧 Technical Specifications:

• Model: TB6560

• Input Voltage: 10V – 35V DC

• Output Current: Up to 3A

• Microstepping: Full, 1/2, 1/8, 1/16

• Control Signal: 3.3V – 5V logic compatible

• Protection: Overheat, short-circuit, over-current

• Optical Isolation: Yes

• Cooling: Built-in heatsink

• Application: Single-axis motor control (X, Y, or Z axis)

Key Features:

• Wide Voltage Range: Operates from 10V to 35V DC, compatible with different power supplies (24V recommended).
• Powerful Output: Delivers a rated output of ±3A with a peak of 3.5A, suitable for a wide range of stepper motors.
• Micro-Stepping Support: Provides various micro-stepping modes (synchronizing, half-step, 1/8 step, 1/16 step) for smoother and quieter operation.
• Advanced Protection Circuits: Features low-voltage shutdown, over-heating protection, and over-current protection for safe and reliable operation.
• High-Speed Optocoupler Isolation: Minimizes signal noise and ensures reliable performance.
• Adjustable Current: Customize the current output to match your specific motor requirements.
• Large Heat Sink: Efficiently dissipates heat for long-lasting operation.

Applications:

Applications:

• DIY CNC routers & laser engravers

• 1-axis camera sliders & robotic arms

• 3D printers and XY plotters

• Arduino-based motorized projects

• Educational & industrial automation setups

• Smooth control for NEMA stepper motors

• Control stepper motors for precise and accurate cutting and engraving.
• Drive stepper motors for smooth and reliable filament extrusion.
• Automate tasks requiring precise motor control.

⚠️ Precautions:

• Ensure proper voltage input (do not exceed 35V DC)

• Use a cooling fan for extended operation

• Avoid wiring changes while powered

• Match motor current with DIP switch settings

• Use isolated signal sources to prevent noise interference

Upgrade your CNC router or other stepper motor projects with the TB6560 Single Axis 3A Stepper Motor Driver and experience powerful, reliable, and user-friendly control.
