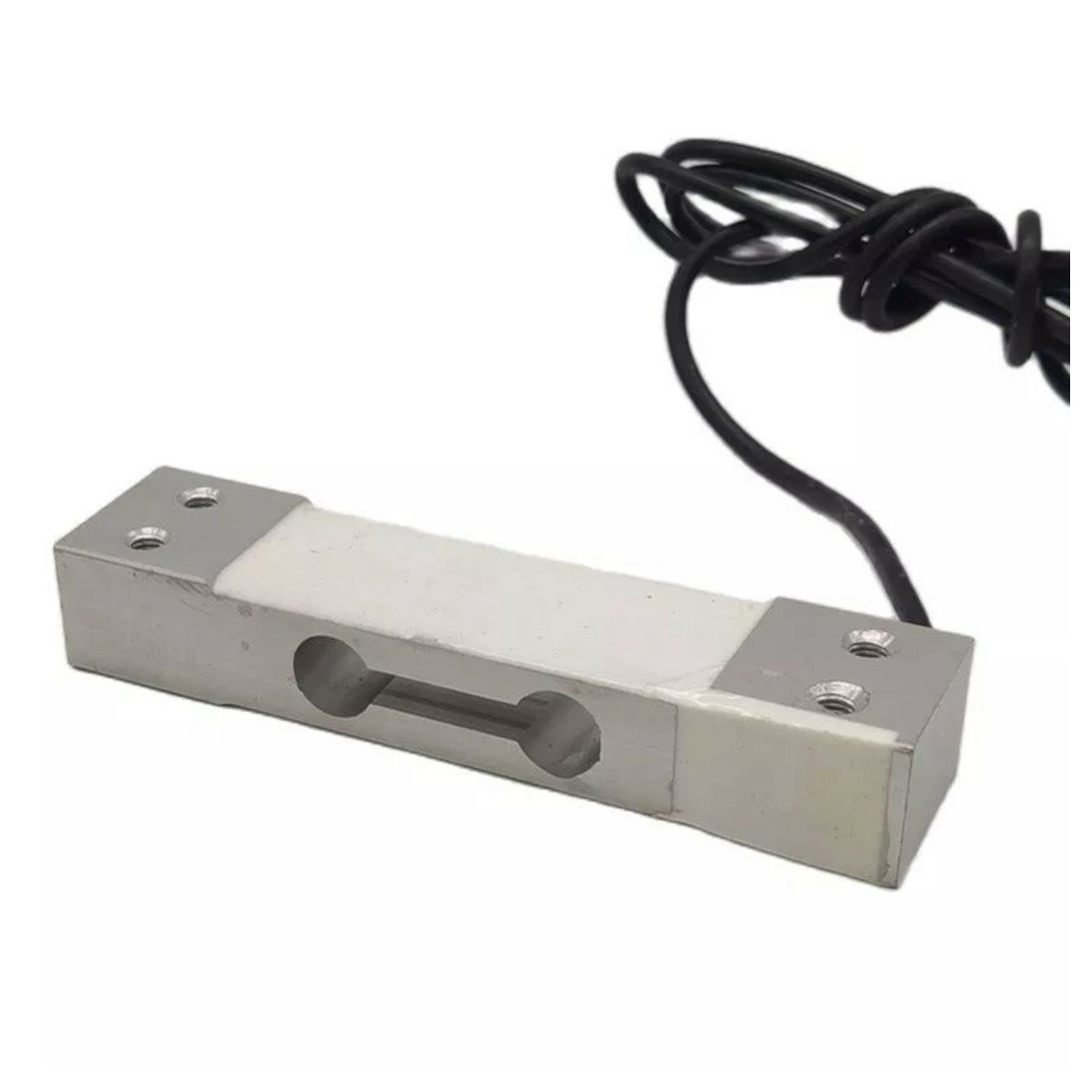

Straight Bar Load Cell 20Kg

The Straight Bar Load Cell 20Kg is a premium strain gauge-based load sensor engineered to measure forces up to 20 kg with high accuracy and stability. Its straight bar design ensures minimal deformation, precise linear response, and consistent measurement across multiple load cycles. This makes it an ideal choice for industrial weighing, precision electronic scales, laboratory testing, robotics, and smart IoT projects.

Equipped with a strain gauge technology, the sensor converts mechanical load into a measurable electrical signal, which can be amplified using modules like HX711 and easily interfaced with microcontrollers such as Arduino (https://electroway.org/product-category/arduino-and-accessories/arduino-boards/) or NodeMcu (https://electroway.org/product-category/iot-and-smart-solutions/iot-modules/nodemcu/) for digital readouts. Its robust alloy steel or stainless-steel construction ensures long-term reliability, even under frequent use.

🔧 Technical Specifications

• Load Capacity: 20 kg

• Type: Straight bar strain gauge load cell

• Output: mV/V proportional to applied force

• Excitation Voltage: 5–10 V DC

• Linearity & Accuracy: High linearity, minimal hysteresis

• Material: Alloy steel or stainless steel

• Operating Temperature: -10 °C to +40 °C (typical)

• Recommended Usage: Digital scales, robotics, industrial weighing, force measurement

🛠 Applications & Use Cases

Industrial & Commercial

• Electronic weighing scales for kitchens, postal, laboratories, and retail

• Packaging and production line force measurement

• Automated material handling and quality control systems

DIY & Electronics Projects

• Smart weight measurement with Arduino or NodeMcu

• Robotics for force-sensitive grippers, pressure detection, or load monitoring

• IoT-based smart scales and home automation applications

Research & Development

• Laboratory force testing and calibration

• Experimental setup for mechanical engineering or physics projects

Agriculture & Food Industry

• Monitoring feed quantities or produce weight

• Automated load-sensing for smart farming equipment

⚠ Precautions & Best Practices

• Never exceed the 20 kg load limit to avoid permanent sensor damage

• Avoid twisting, bending, or applying side-loads to maintain accuracy

• Ensure proper mounting and use a flat surface for load application

• Use regulated excitation voltage for consistent signal output

• Protect the sensor from moisture, dust, and corrosive environments

• When connecting to microcontrollers, use HX711 amplifier for stable readings
