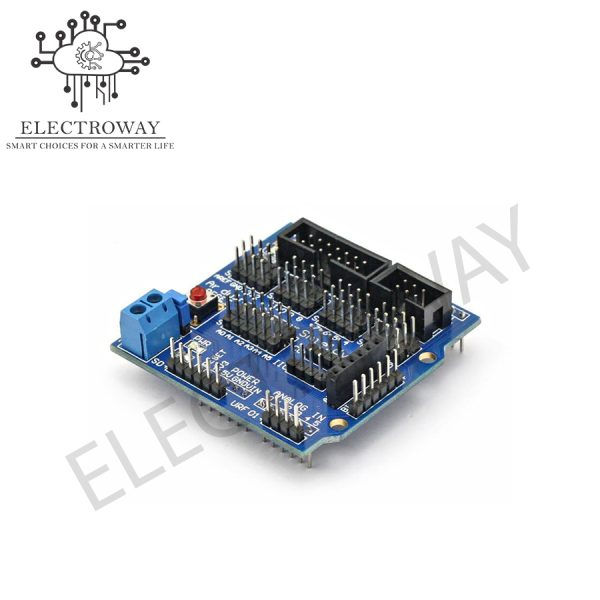

Arduino Sensor Shield V5

The Arduino Sensor Shield V5 is a powerful expansion board designed to dramatically simplify the connection of sensors, servos, modules, and external components to your Arduino Uno or compatible boards. Whether you’re building a robotic arm, automating home sensors, or working on a school STEM project, this shield offers a clean and organized solution to avoid messy wiring.

This shield provides ready-to-use headers for all of Arduino’s digital and analog pins, along with dedicated I2C, UART, and power outputs, allowing developers to quickly build plug-and-play circuits. No more tangled wires or accidental miswiring—just straightforward connections.

Pair it effortlessly with modules such as temperature sensors, ultrasonic rangefinders, IR receivers, or servo motors. With support for 3-pin “S-G-V” style connectors (Signal-Ground-Voltage), it allows modules to be plugged in directly—making it ideal for beginners and advanced makers alike.

Easily integrates into your projects involving Arduino and Accessories, or use alongside various Electronics Components and Tools and Accessories for complete DIY systems.

Key Features:

• ✅ Supports Digital, Analog, I2C, UART, and Servo Connections

• ✅ Clearly labeled pin headers for error-free wiring

• ✅ Compatible with Arduino Uno and similar boards

• ✅ 3-pin “S-G-V” layout supports plug-and-play modules

• ✅ High-quality PCB for durability and clean layout

• ✅ Compatible with a wide variety of sensors and actuators

Applications and Use Cases:

• 🔌 Connect multiple sensors simultaneously for data acquisition

• 🤖 Control multiple servos in robotics and automation projects

• 📡 Ideal for IoT development, smart home systems, and learning kits

• 🧪 Supports classroom demonstrations and hardware training

• 🛠️ Integrates with breadboards and jumper wires for fast testing

Technical Specifications:

• Compatible Boards: Arduino Uno, Mega, and similar

• Ports: Digital (D0–D13), Analog (A0–A5), I2C (SCL/SDA), UART (TX/RX)

• Power Options: 3.3V/5V selectable

• Pin Layout: S-G-V (Signal-Ground-Voltage)

• Material: FR4 PCB with quality solder joints

• Form Factor: Standard Arduino Uno shield size

Precautions:

• ⚠️ Ensure correct voltage settings (3.3V/5V) to prevent module damage

• ⚠️ Double-check sensor orientation and connection polarity

• ⚠️ Avoid contact with conductive surfaces during operation

• ⚠️ Use with compatible Arduino boards only

Recommended Pairings:

• Use with Arduino Uno or compatible boards

• Combine with Jumper Wires for modular setups

• Ideal for use with NodeMCU sensors and modules

• Complements various IoT and Smart Solutions for automation

📺 YouTube Tutorial

Watch: How to Use the Arduino Sensor Shield V5 with Modules and Sensors

🛒 Where to Buy

Order your Arduino Sensor Shield V5 now from our Arduino and Accessories collection and start building smarter, faster, and cleaner hardware projects today.
