Prototype Shield for Arduino UNO

The Prototype Shield for Arduino UNO is a must-have tool for any electronics enthusiast or developer working on custom Arduino projects. It allows you to design, build, and test your own circuits right on top of your Arduino Uno board without messy wiring or separate breadboards.

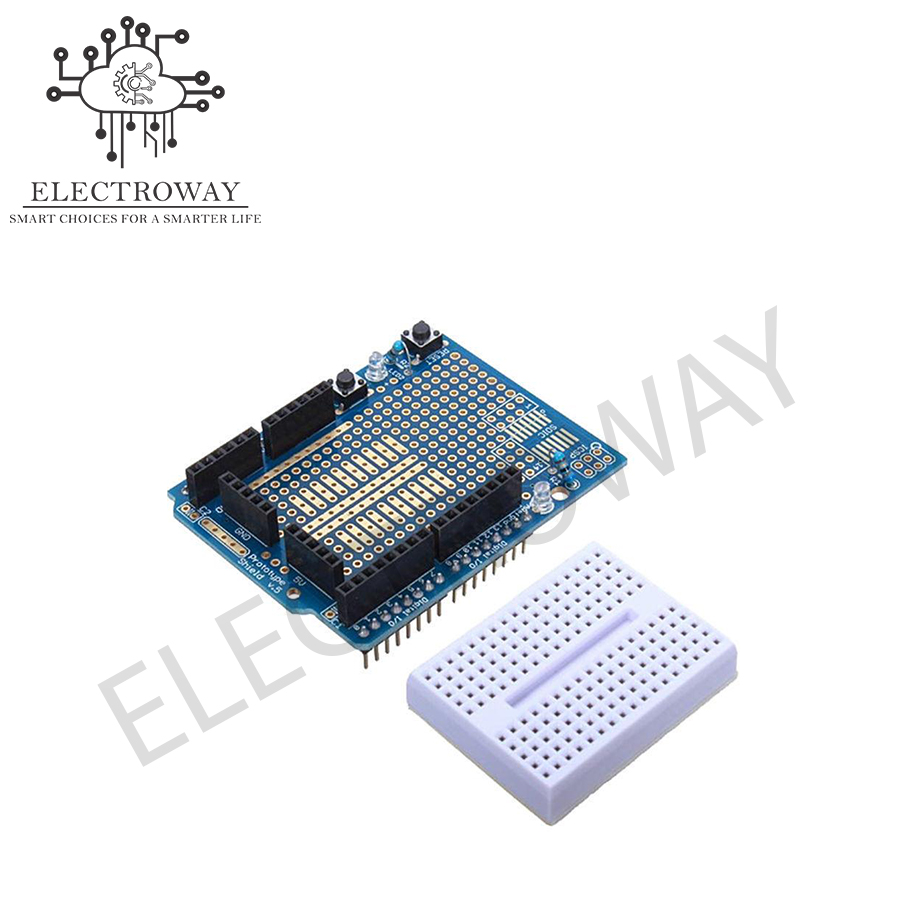

This shield comes with a mini breadboard that adheres directly to the prototyping area. It features a clean layout with through-hole solder points, making it easy to permanently mount components once your prototype is finalized. In addition, you get full access to all Arduino pins, clearly labeled for easy identification.

Moreover, the shield includes a reset button, extra power rails (5V and GND), and breakout points for ICs, resistors, LEDs, and more. It also offers space for SMD components, allowing you to experiment with different hardware designs using both traditional and surface-mount elements.

Whether you’re designing a sensor interface, a robotic controller, or a custom signal processor, this shield provides a stable and professional platform for your electronics work. It’s a staple in classrooms, makerspaces, and personal workbenches alike.

You can combine this shield with parts from our Electronics Components or expand your builds with Arduino and Accessories.

Key Features

• ✅ Includes mini breadboard (adhesive-backed)

• ✅ Solderable through-hole prototyping area

• ✅ Access to all Arduino UNO pins

• ✅ Extra power and ground rails

• ✅ Onboard reset button and status LEDs

• ✅ Support for DIP and SMD components

• ✅ Compact design fits directly on Arduino UNO

Applications and Use Cases

• ⚙️ Build and test custom sensor circuits

• 🔧 Prototype Arduino-based robot controllers

• 📡 Develop and debug IoT interfaces

• 🧪 Create circuits for education and experimentation

• 🧠 Design custom control panels or signal circuits

• 🏗️ Bridge from breadboard testing to permanent designs

Technical Specifications

• Board Type: Arduino UNO compatible shield

• Proto Area: Solderable with standard grid layout

• Breadboard: 170 tie-point mini breadboard included

• Pin Access: All digital and analog pins exposed

• Extra Components: Reset button, LED indicators, power rails

• Supported Components: DIP, SMD, resistors, capacitors, ICs

• Power Supply: Uses Arduino power (5V)

• Form Factor: Standard Arduino UNO shield size

Precautions

• ⚠️ Handle with care to avoid damaging solder pads

• ⚠️ Check pin alignment before stacking

• ⚠️ Use proper tools when soldering to avoid cold joints

• ⚠️ Disconnect Arduino when adding or removing components

Recommended Pairings

• Compatible with all Arduino UNO Boards

• Use alongside modules from Electronics Components

• Get assembly tools from Tools and Accessories

📺 YouTube Tutorial

Watch: How to Use the Prototype Shield with Arduino UNO

🛒 Buy Now

Get your Prototype Shield for Arduino UNO today from our Arduino and Accessories collection and bring your custom circuits to life.
