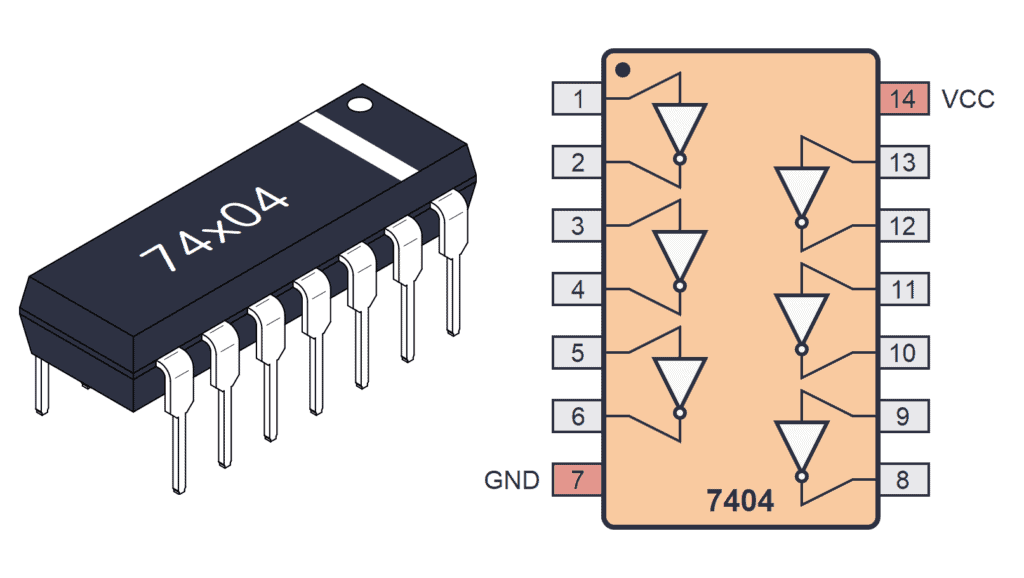

NOT Gate INVERTER 7404 IC

The 7404 IC is a classic digital logic device featuring six independent NOT gates (inverters) within a single integrated chip. Each gate performs a simple logical inversion, outputting the opposite state of its input—HIGH becomes LOW, and LOW becomes HIGH. This makes the 7404 an essential building block in countless digital logic designs.

Operating on standard 5V TTL logic, this chip is known for fast switching, reliable output, and broad compatibility with other 74-series devices. It’s extensively used in timing circuits, waveform shaping, digital buffering, and microcontroller interface logic.

Whether you’re an engineer designing automation systems, a student building logic circuits, or a hobbyist developing embedded systems, the 7404 IC offers robust and flexible inversion logic in a compact and cost-effective package.

🛠 Technical Specifications

💡 Use Cases & Applications

• ✅ Digital Signal Inversion – Flip binary inputs in logic sequences.

• ✅ Microcontroller Logic Interface – Invert input/output signals from microcontrollers like ATmega328P.

• ✅ Waveform Shaping – Clean and invert pulses or digital waveforms.

• ✅ Buffering/Isolation – Add a layer between noisy signals and logic-sensitive devices.

• ✅ Custom Logic Circuit Design – Combine with AND, OR, NAND gates for advanced control flows.

🛠️ Pair With

• 🔧 IC’s – See more logic ICs, microcontrollers, and voltage regulators.

• ⚡ Power Supply Modules – Ensure regulated 5V operation.

• 🧰 Tools and Accessories – Soldering stations, multimeters, and more.

🎥 YouTube Tutorial

📺 Learn How It Works:
👉 7404 NOT Gate Circuit Demo

⚠️ Precautions

• Always tie unused inputs to ground or Vcc to avoid floating states.

• Use decoupling capacitors (0.1µF) near Vcc pin for stability.

• Do not exceed absolute max voltage (typically 7V).

• Avoid excessive output loading to maintain switching performance.

🛒 Summary

The 7404 Hex Inverter IC provides fast and reliable inversion logic in compact DIP packaging. From waveform manipulation to logic-level inversion, this IC is a versatile tool in digital design, automation, and embedded development.

🔗 Get it now from Electroway and build logic systems with confidence.
