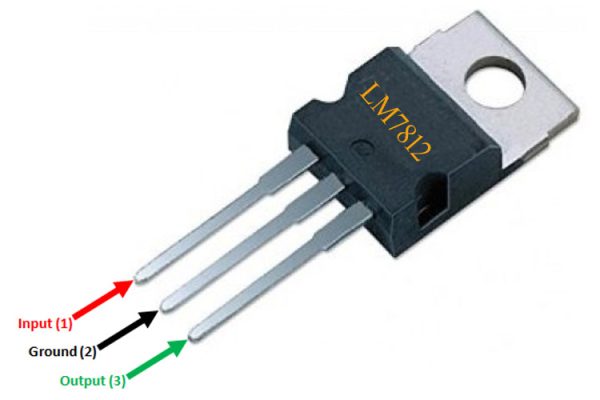

LM7812 Voltage Regulator
The LM7812 Voltage Regulator is part of the widely used 78XX series, offering a fixed +12V DC output. It’s designed for use in a broad range of electronics requiring regulated voltage, from industrial-grade embedded systems to DIY power supplies.
With a rugged TO-220 case, it can handle up to 1.5A of current (with adequate heatsinking) and is protected against thermal overload, input overvoltage, and output short-circuits. The LM7812 is an essential component when stable voltage is critical for performance and protection.
🛠 Technical Details
| Specification | Details |
|---|---|
| Output Voltage | 12V (Fixed) |
| Input Voltage Range | 14.5V – 35V |
| Max Output Current | 1A – 1.5A (with heatsink) |
| Dropout Voltage | ~2V |
| Output Voltage Tolerance | ±2% |
| Package Type | TO-220 |
| Internal Features | Overload, Short-Circuit & Thermal Protection |
| Operating Temperature | -40°C to +125°C |
💡 Use Cases & Applications
-
⚙️ Embedded Power Supplies
Supplies regulated 12V for embedded microcontrollers and digital logic systems. -
🎧 Audio & Analog Circuits
Suitable for audio amplifiers, analog sensors, and signal conditioning circuits where low ripple is essential. -
🏠 Home Automation Modules
Used in powering components in home security, smart lighting, and relay-based switching circuits. -
🛠️ Prototyping & Hobby Projects
Ideal for breadboard setups and powering modules like NodeMCU or displays that require regulated power. -
🔬 Test Benches & Academic Labs
Common in education kits, power rails for lab instruments, and student circuit experiments.
🛠️ Pair With
🎥 YouTube Tutorial
📺 Learn how to build a 12V Regulated Power Supply
👉 Watch Video Tutorial
⚠️ Precautions & Tips
-
🔥 Use a heatsink for loads above 500mA to prevent thermal shutdown.
-
💡 Always use input (0.33µF) and output (0.1µF) capacitors for stability.
-
🚫 Avoid exceeding maximum input voltage to prevent permanent damage.
-
⚡ Use with filtered DC input to reduce ripple at output.
🏁 Summary & Call-to-Action
The LM7812 12V Voltage Regulator delivers solid performance and protection for countless electronics applications. Whether you’re powering analog equipment or embedded modules, it’s a proven and reliable choice.
👉 Buy Now at Electroway — trusted components, fast delivery, and expert support.
