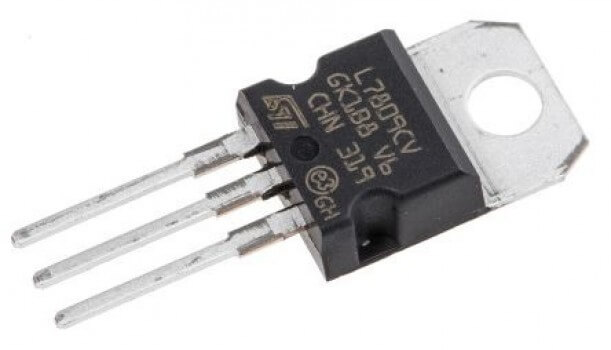

LM7809 Voltage Regulator
The LM7809 Voltage Regulator is a dependable member of the 78XX linear regulator series, engineered to provide a consistent +9V DC output from input voltages typically ranging from 11V to 35V. It is well-suited for applications that require clean, regulated voltage for medium-power electronic circuits.
With its TO-220 form factor, the LM7809 integrates safety features like over-temperature protection, output transistor safe-area compensation, and short-circuit defense. This makes it a reliable power component for both beginner electronics projects and professional industrial setups.
π Technical Details
| Specification | Details |
|---|---|
| Output Voltage | 9V (Fixed) |
| Input Voltage Range | 11V β 35V |
| Max Output Current | 1A to 1.5A (with proper heatsinking) |
| Dropout Voltage | 2V (typical) |
| Package Type | TO-220 |
| Output Type | Fixed Linear |
| Internal Protections | Thermal Shutdown, Short-Circuit |
| Operating Temperature | -40Β°C to +125Β°C |
π‘ Use Cases & Applications
-
π Analog Circuit Power Supply
Perfect for powering op-amps, audio preamps, and other analog modules requiring a clean 9V rail. -
π§ Sensor Systems
Provides stable voltage for sensitive sensor circuits, often used in industrial automation and data acquisition setups. -
π οΈ DIY Electronics & Hobby Projects
Commonly used in custom-made multimeters, signal generators, and embedded controllers. -
π Automotive & Robotics
Suitable for circuits that require 9V regulation in robotics or automotive sensors. -
π¬ Educational Labs
Frequently used in electronics lab setups to provide fixed voltage rails for experiment boards and training kits.
π οΈ Pair With
-
π Power Supply Accessories β Adaptors, regulators, converters
-
π§ Tools & Accessories β For soldering, mounting, and testing
-
π Electronic Components β Capacitors, diodes, and filters
π₯ YouTube Tutorial
πΊ How to Build a 9V Regulated Power Supply with LM7809
π Watch Tutorial
β οΈ Precautions & Tips
-
π₯ Heatsink Required for loads above 500mA to avoid overheating
-
𧴠Place Bypass Capacitors (0.33μF on input and 0.1μF on output) to improve performance
-
π« Avoid reverse polarity and over-voltage inputs to prevent damage
-
β‘ Ensure proper grounding for reduced electrical noise in analog circuits
π Summary & Call-to-Action
The LM7809 Regulator IC is a must-have for electronics engineers and hobbyists seeking reliable 9V voltage regulation. With robust protection features and easy integration, it supports both educational and industrial projects efficiently.
π Order now from Electroway β your trusted electronics components partner.
