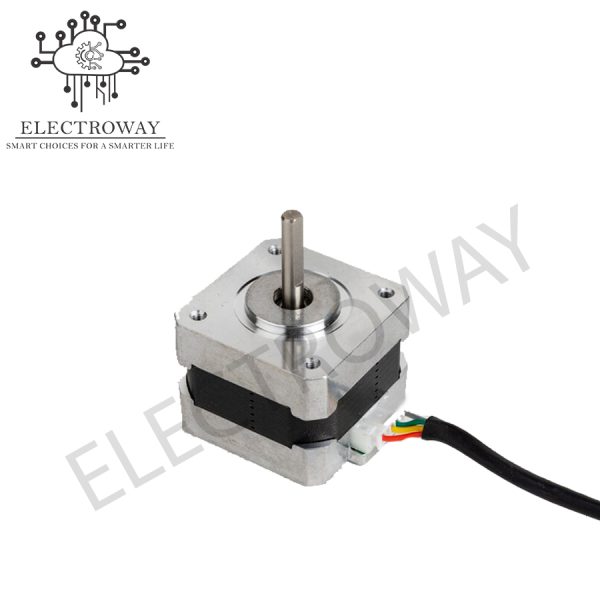

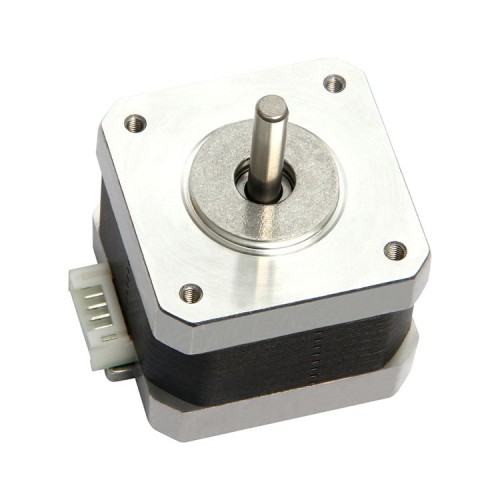

NEMA 17 High Torque Stepper Motor

The NEMA 17 High Torque Stepper Motor is a top-tier solution for applications that demand precise, repeatable movement and strong positional control. This motor features a step angle of 1.8°, delivering 200 steps per full rotation, making it ideal for CNC routers, 3D printers, robotic arms, and other mechatronics systems.

Constructed with high-grade copper windings and strong internal magnetic materials, the motor offers impressive holding torque to maintain position even without movement. Its compact NEMA 17 frame (42mm x 42mm) makes it versatile for integration into compact machinery, including DIY CNC machines and automation prototypes.

For advanced motion control, pair this motor with a reliable driver like the DRV8825 or A4988 Stepper Driver to unlock high-resolution, microstepping motion.

Explore more in our Electronics Components or Tools and Accessories categories for compatible parts.

✅ Key Features (Detailed):

• Standard NEMA 17 Frame (42mm x 42mm):
  Compact size fits perfectly in CNC machines, 3D printers, and compact robotics enclosures.

• 1.8° Step Angle (200 Steps/Revolution):
  Provides precise motion control and repeatability for smooth linear or rotational movements.

• High Holding Torque:
  Maintains stable position when powered—ideal for vertical loads in Z-axis or robotic joints.

• Bipolar Configuration (4 Wires):
  Compatible with most stepper motor drivers like A4988, DRV8825, and TB6600.

• Low Vibration and Noise:
  Runs quietly with minimal mechanical disturbance—great for desktop applications like 3D printing.

• Durable Build & Efficient Winding:
  Premium copper coils and rigid rotor ensure long-term durability and consistent performance.

Specifications:

• Step Angle: 1.8°
• Holding Torque: 0.45 Nm
• Rated Voltage: 3.3 V
• Phase Resistance: 2.2 Ω
• Dimensions: 42 x 42 x 42 mm

🛠️ Typical Applications (Detailed):

• CNC Machines (3-axis, 4-axis):
  Controls X, Y, or Z axis with high accuracy in desktop and industrial CNC routers and mills.

• 3D Printers:
  Powers extruder, gantry, or bed movement with precise steps—popular in DIY and commercial 3D printers.

• Robotic Arms & Grippers:
  Controls rotation or linear actuation in DIY robotic arms, CNC pick-and-place systems, and automation tools.

• Camera Sliders & Gimbals:
  Allows smooth panning and tilting in custom camera rigs or timelapse setups.

• Laboratory & Educational Projects:
  Perfect for engineering students and educators building motion control systems or CNC models.

⚠️ Precautions:

• Always use with an appropriate heat-sinked driver (e.g., DRV8825 or A4988)

• Avoid exceeding rated current to prevent coil overheating

• Ensure proper microstepping settings for smoother motion

• Power off the motor before manually turning the shaft to prevent back-EMF damage

• Mount on a solid surface to prevent vibration during high-speed operation

📺 YouTube Tutorial:

🎥 NEMA 17 Stepper Motor – Wiring, Setup & Control Tutorial
