Force Sensitive Resistor (FSR) 0.6 inch

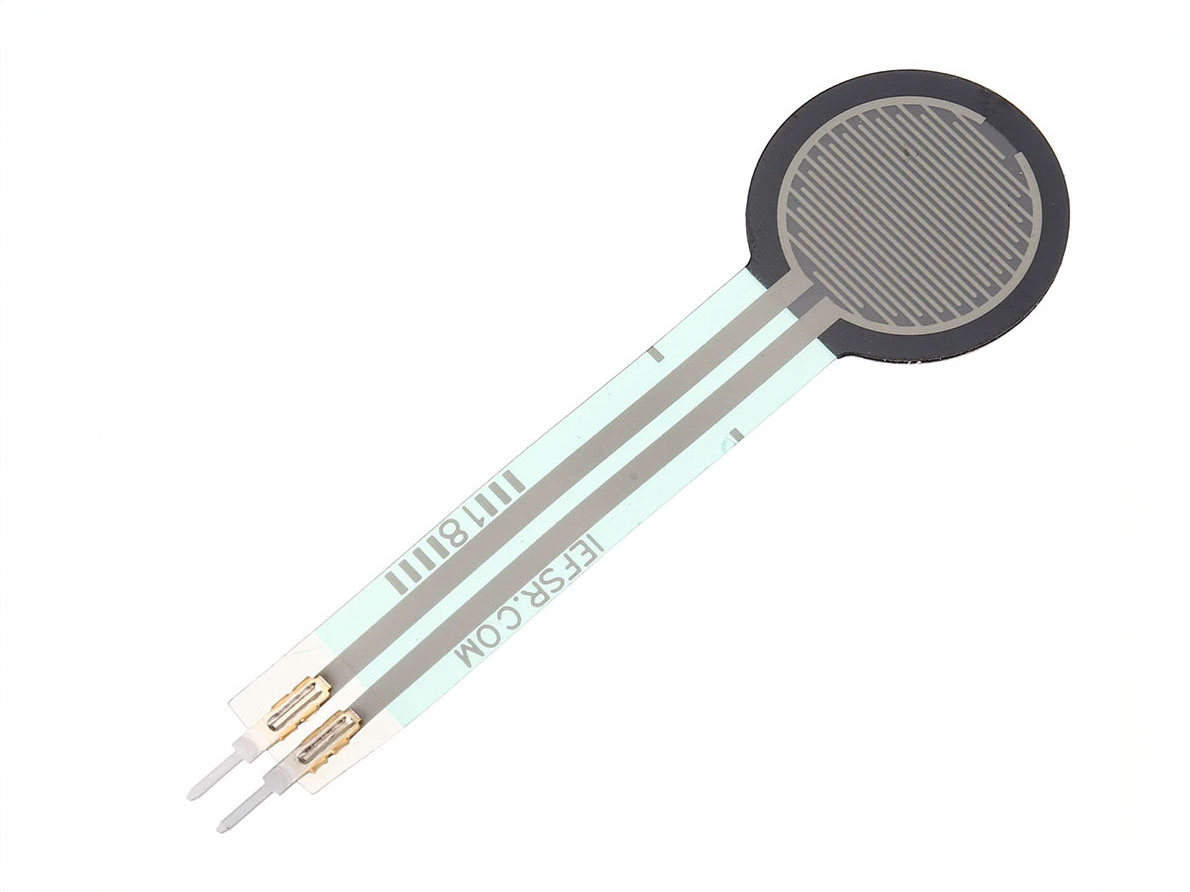

The Force Sensitive Resistor (FSR) 0.6 inch is a versatile, flexible, and ultra-thin pressure sensor designed to measure force or physical pressure applied to its surface. When force is applied, the resistance of the sensor decreases, generating an analog output that can be easily read by Arduino or Raspberry Pi.

This makes it an ideal component for robotic grips, touch-sensitive interfaces, medical devices, gaming controllers, and DIY force measurement projects.

Key Features

✅ Analog Force Measurement: Resistance varies with applied pressure.
✅ Compact Design: 0.6-inch sensing area for space-limited applications.
✅ Flexible Construction: Easily integrates into curved or soft surfaces.
✅ Arduino Compatible: Directly interface with analog input pins.
✅ Fast Response: <10ms for real-time force detection.
✅ Durable and Reusable: Designed for multiple press-and-release cycles.

Technical Specifications

• Sensor Type: Force Sensitive Resistor (FSR)

• Sensing Area: 0.6 inch diameter

• Operating Voltage: 0–5V DC

• Resistance (No Load): >10MΩ

• Resistance (Full Load): <200Ω

• Force Sensitivity Range: 0.2N – 20N

• Thickness: <0.5mm

• Response Time: <10ms

• Operating Temperature: -30°C to +70°C

• Output Type: Analog

• Connector Type: 2-pin

Applications

🔹 Arduino Projects – Pressure and weight detection
🔹 Robotics – Touch and grip sensors for robotic arms
🔹 Wearable Technology – Body pressure and movement monitoring
🔹 Gaming Devices – Force-sensitive control buttons
🔹 Industrial Prototyping – Automation and mechanical testing
🔹 Medical Devices – Patient pressure mapping and support

Working Principle

The FSR operates on conductive polymer sensing technology. When pressure is applied:

• Conductive particles inside the sensor rearrange, reducing resistance.

• This resistance change converts to a variable voltage signal.

• The signal is read by a microcontroller’s analog input pin, allowing accurate measurement of force intensity.

📘 Formula:
Output Voltage = (Applied Force / Sensitivity Constant) × Reference Voltage

How to Interface with Arduino

1. Connect one end of the FSR to 5V, and the other to analog pin A0 via a 10kΩ resistor.

2. Measure the voltage using analogRead(A0).

3. Calibrate to convert readings into force or pressure values.

💡 Ideal for projects combining with:

• Arduino Boards

• Electronics Components

• Sensors and Modules

• Tools and Accessories

Precautions

⚠️ Avoid bending or twisting the sensor excessively.
⚠️ Do not expose to direct sunlight or high humidity.
⚠️ Apply uniform pressure for accurate readings.
⚠️ Operate only within specified voltage range.

YouTube Tutorial

🎥 Watch: How to Use Force Sensitive Resistor (FSR) with Arduino

Summary

The Force Sensitive Resistor (FSR) 0.6 inch is a reliable, high-sensitivity force sensor ideal for a wide range of applications — from Arduino robotics to wearable devices. Its compact size, analog precision, and easy integration make it the perfect choice for students, hobbyists, and engineers seeking accurate touch and pressure sensing solutions.
