ESP8266-12E WiFi Module
The ESP8266-12E WiFi Module is a robust and enhanced version of the ESP series, designed to offer seamless WiFi connectivity for a wide range of Internet of Things (IoT) applications. Featuring the reliable ESP8266EX chipset, the 12E variant is ideal for developers looking for a balance between performance, compact design, and compatibility with popular development platforms.
This module integrates a 2MB SPI flash memory, a high-gain onboard PCB antenna, and full 802.11 b/g/n WiFi support. It supports multiple interfaces, including UART, SPI, I2C, PWM, and 16 GPIO pins, enabling versatile sensor, actuator, and device integration. The ESP-12E is also designed for low power consumption, making it a great fit for battery-powered smart devices.
Whether you’re building a smart thermostat, WiFi relay switch, or a wireless data logger, the ESP8266-12E delivers reliable performance with easy integration into projects built using Arduino, NodeMCU, or ESPHome.
🔍 Key Features & Technical Specifications:
-
Chipset: ESP8266EX
-
WiFi Support: IEEE 802.11 b/g/n
-
Flash Memory: 2MB (SPI Flash)
-
Operating Voltage: 3.0 – 3.6V
-
Logic Level: 3.3V
-
GPIO Pins: 16
-
Interfaces: UART, SPI, I2C, PWM, ADC
-
Antenna: High-performance onboard PCB antenna
-
Security Protocols: WPA/WPA2
-
Power Modes: Deep Sleep (<10µA), Light Sleep, Modem Sleep
-
Operating Temperature: -40°C to +125°C
-
Form Factor: SMT (ideal for embedded use)
⚙️ Applications:
-
IoT-based home and office automation
-
WiFi-enabled smart gadgets
-
Remote sensor and actuator control
-
Real-time environmental monitoring
-
Wireless robotics and automation
-
Academic and industrial embedded systems
-
Arduino-based IoT projects
📍 Available at ElectroWay – your go-to electronics hub in Johar Town, Lahore. We ship across Pakistan with top-notch support and quality assurance.
-
Package Includes :
1 x ESP-12E ESP8266 Wifi Module

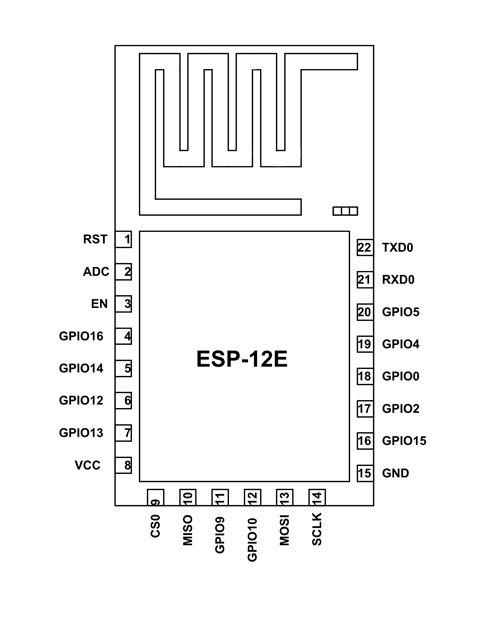

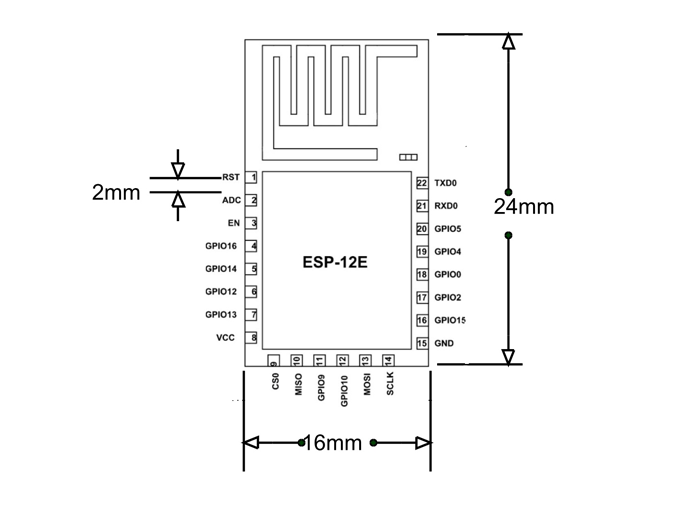

Model and Dimensions
