DS18B20 Temperature Sensor Module

DS18B20 Temperature Sensor Module is a digital temperature sensor, and you can easily connect it to Arduino with only one 4.7-pound resistor, base 1 – Ground 2 – Output – Base 3 to the positive of the source, with resistance to base 2 Is connected. The connection of this sensor to the Arduino via the 1-wire protocol is established. Therefore, several sensors can be connected only through one common wire to Arduino. The output is digitally accurate to 12 bits. Therefore, the temperature can be measured with a precision of 0.0625 º C.

DS18B20 Temperature Sensor Module

The DS18B20 Temperature Sensor Module is a digital temperature sensor designed for high-accuracy temperature measurement in various environments. It operates within a temperature range of -55°C to +125°C with an accuracy of ±0.5°C, making it ideal for industrial, commercial, and home automation applications.

This sensor uses the One-Wire protocol, allowing multiple sensors to be connected to a single data pin, simplifying wiring and increasing efficiency. Whether you need temperature monitoring for HVAC systems, smart homes, IoT projects, or scientific experiments, the DS18B20 sensor is an excellent choice.

The module is fully compatible with Arduino, Raspberry Pi, ESP8266, and other microcontrollers, making integration easy. It also works well with data logging systems, weather stations, and thermal control applications.

🔧 Key Features & Benefits:

✔ High Accuracy: ±0.5°C precision for reliable temperature readings.
✔ Wide Temperature Range: Operates between -55°C to +125°C, making it suitable for various conditions.
✔ One-Wire Communication: Supports multiple sensor connections using a single data pin.
✔ Easy Integration: Works with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
✔ Low Power Consumption: Ideal for battery-powered and energy-efficient applications.
✔ Versatile Applications: Can be used in industrial automation, smart home systems, aquariums, hydroponics, and weather monitoring.

⚡ Applications of DS18B20 Temperature Sensor Module:

🔹 Industrial Temperature Monitoring
🔹 HVAC & Environmental Control Systems
🔹 Smart Home Automation
🔹 IoT & Embedded Systems
🔹 Liquid & Air Temperature Sensing
🔹 Weather Stations & Data Logging
🔹 Scientific & Medical Temperature Measurement

🛠 How to Use the DS18B20 Temperature Sensor Module?

1️⃣ Connect the DS18B20 module to your Arduino, Raspberry Pi, or any microcontroller.
2️⃣ Use a 4.7kΩ pull-up resistor between the data and power lines for optimal performance.
3️⃣ Implement One-Wire communication libraries for reading accurate temperature data.
4️⃣ Display or log temperature readings for monitoring, control, and automation purposes.

For more high-quality temperature sensors and electronic components, visit:
➡ ElectroWay Sensors Collection

Package Includes:

1 x DS18B20 Temperature Sensor Module

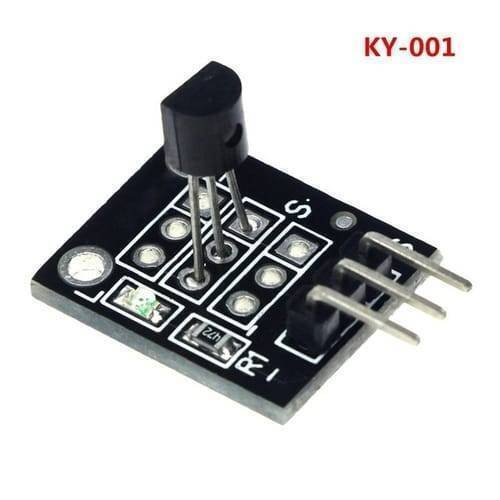

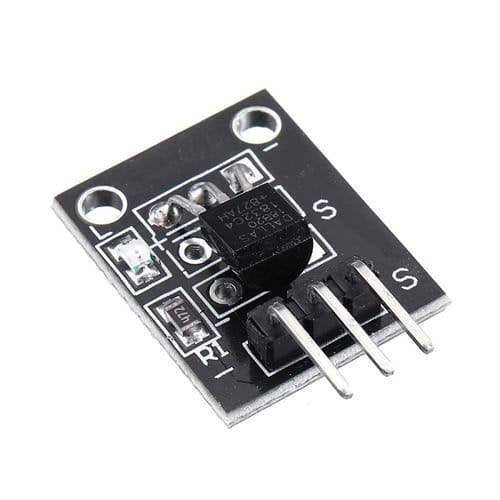

DS18B20 Temperature Measurement Sensor Module KY 001 HW-477
