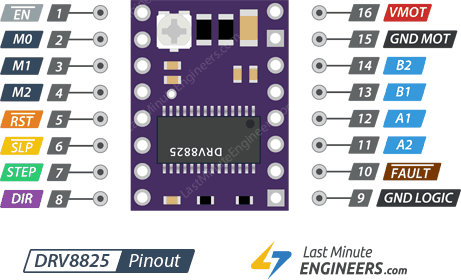

DRV8825 Stepper Motor Driver Module

The DRV8825 Stepper Motor Driver Module is a high-performance solution for precise control of bipolar stepper motors in automation, robotics, and motion control projects. Designed for compatibility with RAMPS, Arduino, and CNC controllers, this module supports up to 1/32 microstepping, ensuring ultra-smooth and accurate positioning.

Built with Texas Instruments’ DRV8825 IC, this driver supports motor voltages from 8.2V to 45V and currents up to 2.5A per coil when properly cooled with the included aluminum heat sink. It features built-in over-temperature, over-current, and short-to-ground protection, offering reliability for long-duration tasks.

Whether you’re building a 3D printer, DIY CNC, or a multi-axis robotic platform, the DRV8825 provides superior step resolution, noise reduction, and thermal performance. It fits directly into standard stepper sockets and is a pin-compatible upgrade to the popular A4988 module.

Explore more related modules in our Electronics Components and Arduino and Accessories categories.

Features Of Drv8825 Stepper Motor Driver RAMPS Heat Sink 3D Printer Motor Driver:

• Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
• Simple step and direction control interface
• Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
• Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
• Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
• 45 V maximum supply voltage
• Built-in regulator (no external logic voltage supply needed)
• Can interface directly with 3.3 V and 5 V systems
• Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
• Short-to-ground and shorted-load protection
• 4-layer, 2 oz copper PCB for improved heat dissipation
• Exposed solderable ground pad below the driver IC on the bottom of the PCB

Specifications Of Arduino DRV8825 Microstepping Bipolar Stepper Motor Controller:

1. Model: DRV8825
2. Supply Voltage: 8.2 – 42 VDC.
3. Current Capacity : 2.2A max(24V).
4. Continuous current per phase: 1.5 A.
5. Minimum Logic voltage: 2.5V.
6. Maximum Logic Voltage: 5V.
7. Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
8. Dimensions : 15 x 20 mm.
9. Weight: 4 gm.

🛠️ Typical Applications:

• ✅ 3D Printers (like Prusa, Ender, etc.)

• ✅ CNC Machines and Laser Cutters

• ✅ Multi-axis robotic arms

• ✅ DIY camera sliders and motion rigs

• ✅ Arduino stepper control projects

• ✅ Precision automation systems

Package Include:

• 1x DRV8825 stepper motor driver with aluminum heat sink

Best Online Shopping Website For DRV8825 Stepper Motor Driver with Aluminum Heat Sink For  3D Printer Motor  in a cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Rawalpindi Gujranwala and all over Pakistan

📺 YouTube Tutorial:

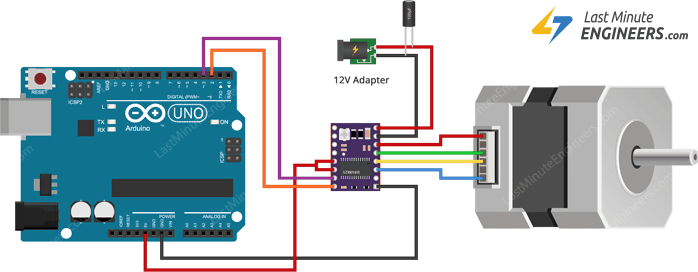

🎥 DRV8825 Stepper Driver Setup Guide for Arduino
