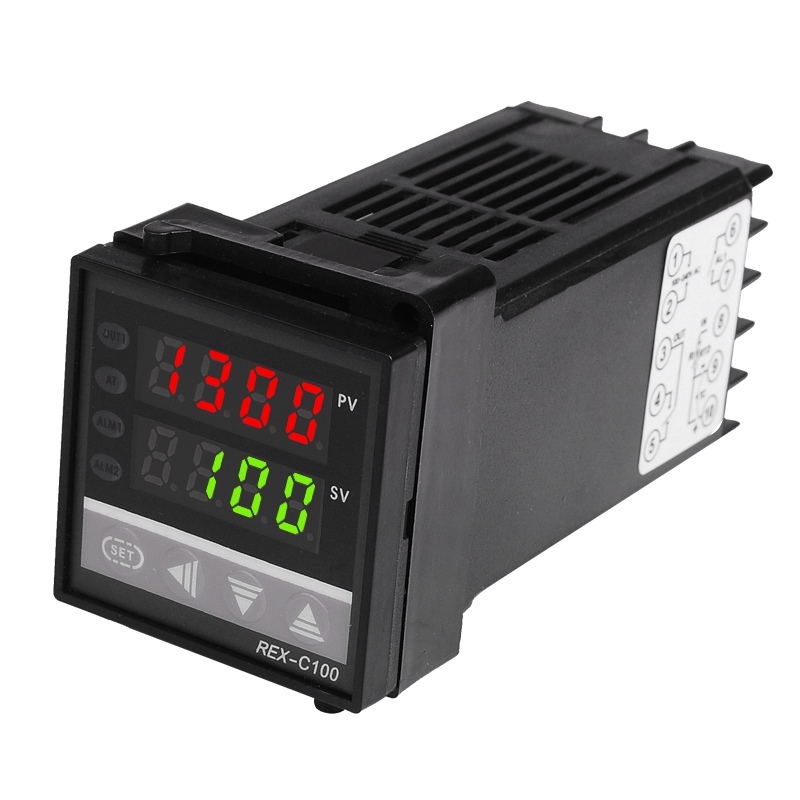

REX-C100FK07 Digital Temperature Controller

The REX-C100FK07 Digital Temperature Controller is a high-performance PID temperature controller designed for precise temperature monitoring and control in industrial and laboratory environments. It supports K-type thermocouples and RTD sensors, offering real-time digital display, PID auto-tuning, and relay output for stable heating or cooling control.

Compact, reliable, and user-friendly, the REX-C100 is perfect for automatic temperature control systems in ovens, furnaces, plastic molding machines, and incubators.

Key Features

✅ PID Control: Intelligent Proportional-Integral-Derivative control for precise temperature regulation.
✅ Auto-Tuning Function: Automatically adjusts PID parameters for optimal performance.
✅ Dual Display: Simultaneous set temperature (SV) and measured temperature (PV) readings.
✅ Universal Input: Supports K-type thermocouple or PT100 RTD sensor.
✅ Relay Control Output: Suitable for controlling SSRs, relays, and contactors.
✅ Compact Design: Panel-mount controller with easy wiring terminals.
✅ High Accuracy: ±0.5% full scale for reliable operation.

Technical Specifications

• Model: REX-C100FK07

• Input Type: K-type thermocouple / PT100 RTD

• Temperature Range: 0°C – 400°C (K-type)

• Control Method: ON/OFF, PID (auto-tuning supported)

• Output Type: Relay / SSR drive

• Display: Dual 4-digit LED display (PV/SV)

• Accuracy: ±0.5% FS ± 1 digit

• Power Supply: 100–240V AC, 50/60Hz

• Mounting: Panel mount

• Relay Output: 250V AC / 3A (resistive load)

• Size: 48 × 48 × 110 mm

How It Works

The REX-C100FK07 monitors the temperature via a K-type thermocouple or RTD sensor. Based on the difference between the set temperature (SV) and current temperature (PV), it adjusts the output through PID control. This minimizes overshooting and ensures stable and accurate temperature maintenance. The auto-tuning feature automatically determines the optimal PID parameters for your system.

Applications

🔥 Industrial Ovens & Furnaces – Maintain precise heating levels.
🐣 Incubators & Egg Hatchers – Stable temperature control for hatching.
🧪 Laboratories – Control temperature in experiments and testing.
⚙️ Plastic Molding & Extrusion Machines – Maintain optimal plasticity.
🥇 Soldering Stations & Heat Treatment – Consistent and controlled heating.

Precautions

⚠️ Ensure correct wiring of input and output terminals.
⚠️ Use a solid-state relay (SSR) for high-power loads.
⚠️ Avoid installing in areas with moisture or vibration.
⚠️ Verify sensor compatibility before use.
⚠️ Disconnect power before wiring or adjusting parameters.

Internal Links

• Arduino and Accessories

• Temperature Sensors

• Power Supply Modules

• Industrial Controllers

YouTube Tutorial

🎥 Watch: How to Use REX-C100FK07 Digital Temperature Controller (PID Setup Guide)

Summary

The REX-C100FK07 Digital Temperature Controller delivers industrial-grade temperature control with PID precision and auto-tuning capability. Its universal compatibility with K-type thermocouples and RTD sensors, along with its durable design and dual-display interface, makes it ideal for industrial heating, incubators, and laboratory equipment. Whether you’re automating a heater, furnace, or DIY project, this controller ensures accurate, stable, and safe temperature management.
