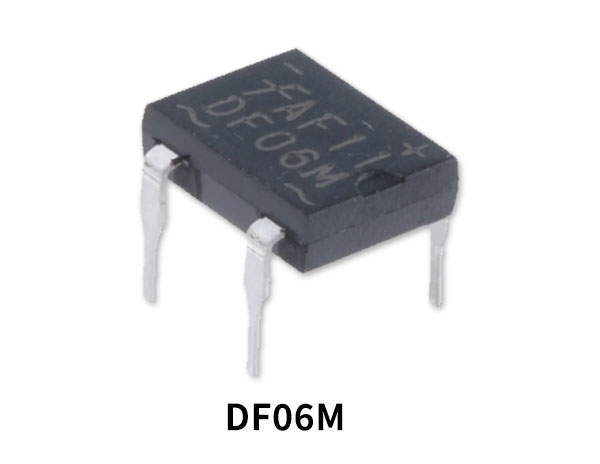

DF06M 600V 1A Bridge Rectifier Diode Ic
The DF06M Bridge Rectifier IC is a full-wave rectifier capable of handling up to 1A average current and 600V peak reverse voltage. It consists of four diodes in a single package, simplifying AC-to-DC conversion for various electronic applications.
This IC is widely used in SMPS, LED drivers, adapters, battery chargers, and power supply circuits where efficient AC rectification and compact design are required.
🔹 Applications
-
AC to DC conversion in power adapters and chargers
-
SMPS (Switch Mode Power Supply) circuits
-
LED lighting power supplies
-
Battery charging systems
-
Industrial control circuits
-
DC motor drives
-
Consumer electronics and household appliances
🔹 Precautions
-
Do not exceed 600V reverse voltage
-
Maximum forward current should not exceed 1A
-
Use proper heat sinking or PCB copper area for dissipation
-
Ensure correct polarity connection to avoid damage
-
Protect with a fuse in high-current applications
-
Keep away from high inrush current surges without adequate protection
🔹 Technical Specifications
-
Component Type: Bridge Rectifier Diode IC
-
Model: DF06M
-
Max Repetitive Peak Reverse Voltage (Vrrm): 600V
-
Max RMS Voltage: 420V
-
Max DC Blocking Voltage: 600V
-
Forward Continuous Current (If): 1A
-
Non-Repetitive Surge Current (Ifsm): 30A (8.3ms single half-sine wave)
-
Typical Forward Voltage Drop (Vf): 1.1V at 1A
-
Operating Temperature Range: -55°C to +150°C
-
Package: SMD/Through-Hole
📹 Tutorial Video
Watch Bridge Rectifier Working Tutorial
🔹 Related Categories
🔹 Summary
The DF06M Bridge Rectifier Diode IC (600V, 1A) is a reliable and compact AC-to-DC converter solution. With its high reverse voltage capacity, low forward voltage drop, and surge current handling, it is ideal for SMPS, LED drivers, chargers, and power electronics applications. A must-have for Electronics Components and IC’s collections.
