dc-5v-4-phase-5-wire-stepper-motor-with-uln200 28YBJ-48 DC 5V 4 Phase 5 Wire Stepper Motor With ULN2003 Drive in Pakistan

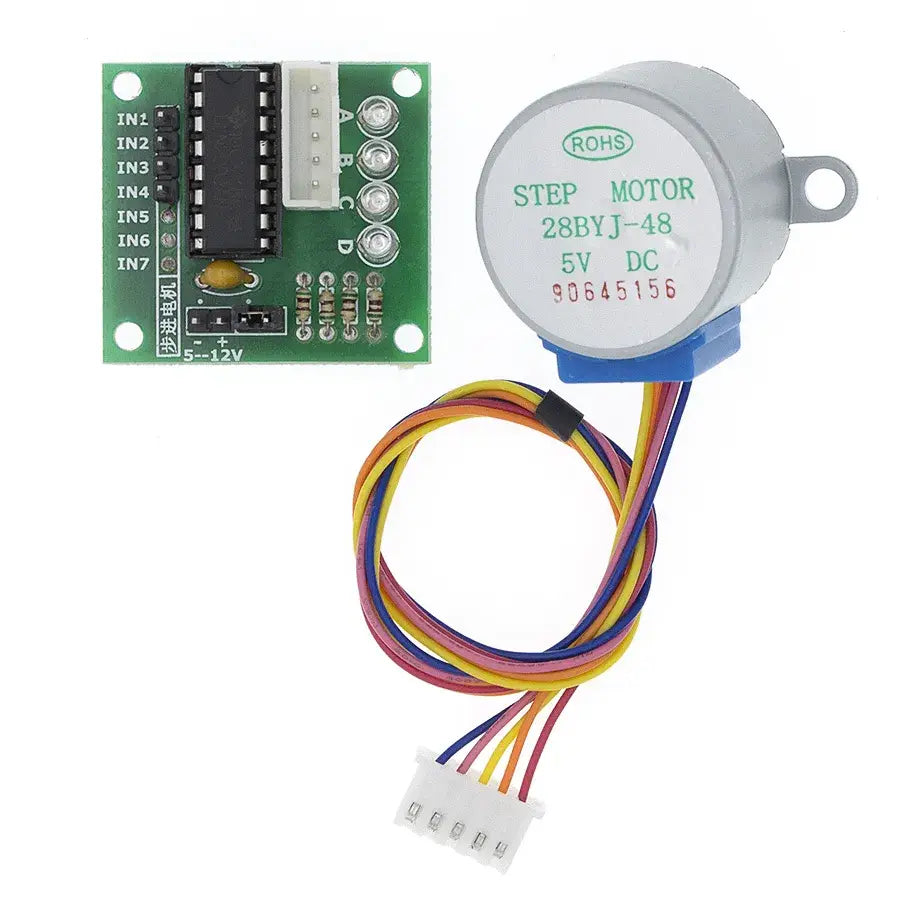

28YBJ-48 DC 5V 4 Phase 5 Wire Stepper Motor With ULN2003 Driver BoardDescription:This is 28YBJ-48 DC 5V 4 phase 5 wire stepper motor with ULN2003 driver board5-wire phase can drive ordinary uln2003 chip can also be connected as phase 2 may be supporting the development board, direct plug. Motor:Diameter: 28mmVoltage: 5VStep angle: 5.625 x 1/64Reduction ratio: 1/64ULN2003 driver board:A, B, C, D LED indication Four-phase stepper motor work statusSize: 31x35mmPackage included:1 x ULN2003 driver board1 x 28BYJ-48 stepper motor Options:5WireStepperMotor

Arduino 28BYJ48 5V Stepper Motor High Torque Stepper Motor with Gear Reduction, so it has good torque for its size, but relatively slow motion. These motors/drivers are made by the millions for A/C units, fans, duct controls etc. which is why they are so inexpensive. Available in 5V or 12V.

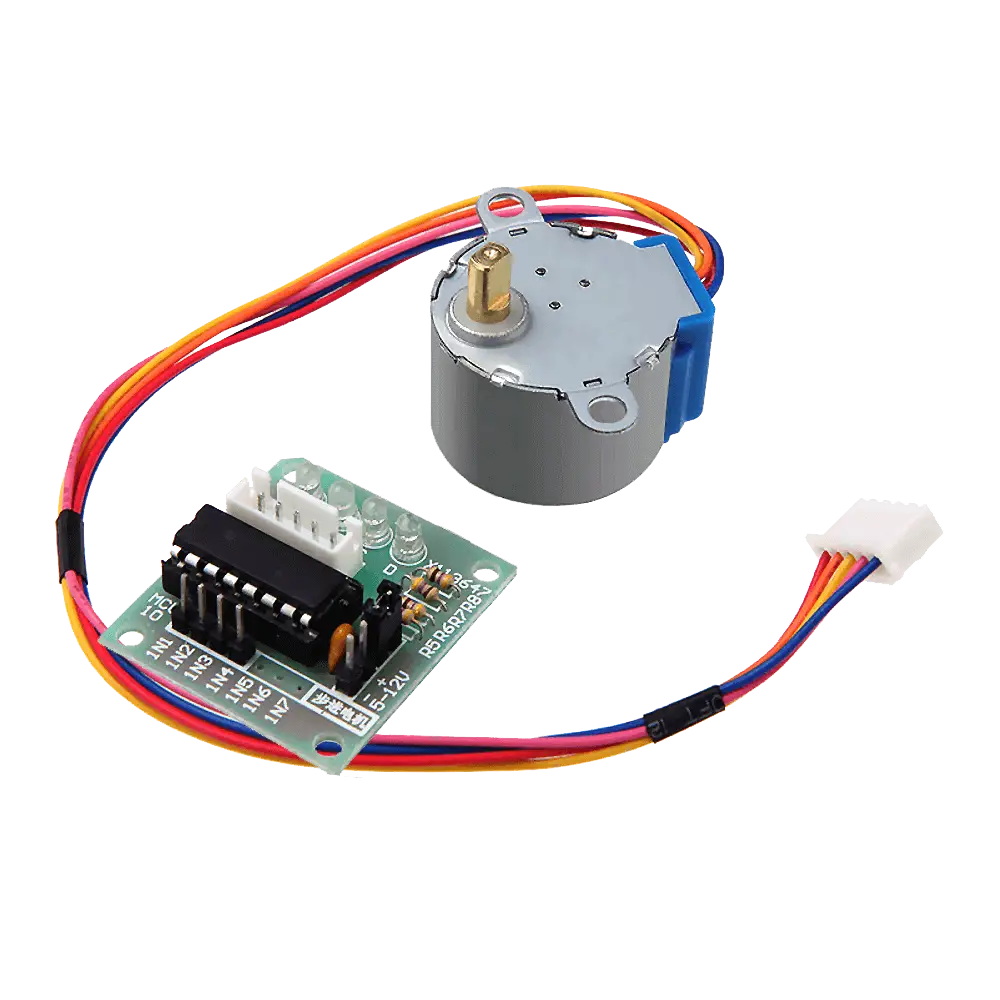

28BYJ-48 Stepper Motor with ULN2003 driver card | Samm Market

Details/ Specificatoins:

Model : 28BYJ-48
Number of Phase : 4
Speed Variation Ratio : 1/64
Stride Angle : 5.625° /64
Rated voltage : DC [5v – 12v]
DC resistance : 5v: 60Ω±7%(25℃); 12v: 130Ω±7%(25℃)
Frequency : 100Hz
Idle In-traction Frequency : > 600Hz
Idle Out-traction Frequency : > 1000Hz
In-traction Torque >34.3mN.m(120Hz)
Self-positioning Torque : 5v: >29.3mN.m; 12v: >42.1mN.m
Friction torque : 600-1200 gf.cm
Pull in torque : 300 gf.cm
Insulated resistance >10MΩ(500V)
Insulated electricity power : 600VAC/1mA/1s
Insulation grade : A
Rise in Temperature <40K(120Hz)
Noise <35dB(120Hz,No load,10cm)

Package Includes:

1 X Stepper motor
1 X uln2003 driver
