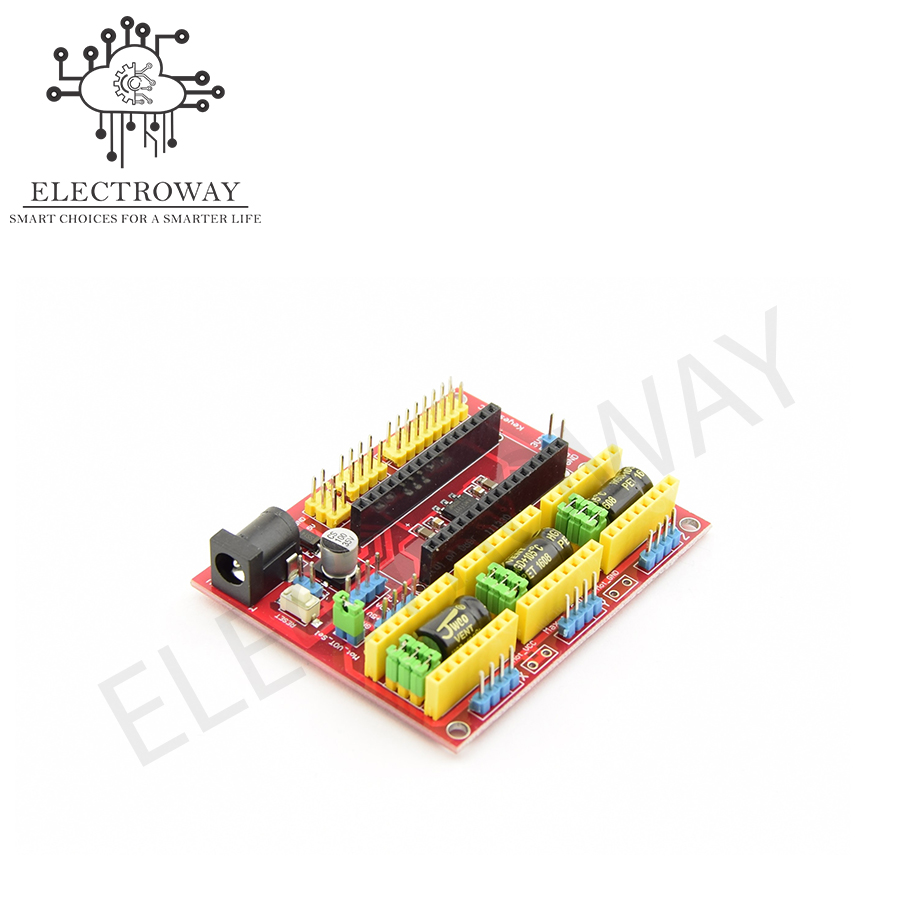

CNC Shield for Arduino Nano

The CNC Shield for Arduino Nano offers a sleek, space-saving way to create your own CNC machines. Designed specifically for the Arduino Nano, it supports 3-axis motion control and integrates smoothly with GRBL firmware. This makes it ideal for lightweight CNC projects such as mini routers, laser engravers, and plotters.

Unlike larger shields, this Nano-compatible version is perfect for compact builds. Despite its small size, it doesn’t compromise on features. You can connect A4988 or DRV8825 stepper drivers to each axis (X, Y, Z) and control your machine with precision.

In addition, the board offers ports for limit switches on all axes, a spindle enable/disable pin, and direction controls. These features allow for safer and more efficient operation. The CNC Shield fits directly onto the Arduino Nano, creating a low-profile stack that saves space and reduces wiring.

Moreover, it’s fully compatible with GRBL, the widely used open-source firmware for CNC control. You can upload G-code via a USB connection using free software like Universal Gcode Sender (UGS). For beginners and makers on a budget, this board is a great starting point.

You can pair this shield with other modules from our Electronics Components and tools from the Tools and Accessories category to build a complete machine.

Key Features

• ✅ Supports X, Y, Z axis stepper motor control

• ✅ Compatible with A4988 / DRV8825 drivers

• ✅ Designed for Arduino Nano boards

• ✅ GRBL firmware support

• ✅ Limit switch connectors for all axes

• ✅ Spindle and direction control ports

• ✅ Small and lightweight for compact builds

Applications and Use Cases

• 🛠️ Mini CNC machines and engravers

• 🔦 Compact laser engraving systems

• 🧾 2D plotters and pen drawing robots

• 🎓 Great for DIY electronics, education, and hobby projects

• 🤖 Robotics and motion control in limited space

Technical Specifications

• Board Compatibility: Arduino Nano

• Driver Support: A4988 / DRV8825 (not included)

• Axis Supported: 3 (X, Y, Z)

• Firmware: GRBL (0.8/0.9 compatible)

• Limit Switch Ports: X-, Y-, Z-

• Power Input: 12–36V via driver boards

• Pin Format: Standard 2.54mm headers

• Form Factor: Nano stackable shield

Precautions

• ⚠️ Ensure drivers are inserted in the correct direction

• ⚠️ Use heat sinks and cooling fans for long-term stability

• ⚠️ Always set correct microstepping on your driver boards

• ⚠️ Double-check wiring before applying external power

Recommended Pairings

• Use with Arduino Nano Boards

• Connect with Stepper Motors and Drivers from our Electronics Components

• Integrate with mechanical parts using tools from Tools and Accessories

📺 YouTube Tutorial

Watch: DIY CNC with Arduino Nano and CNC Shield Setup Guide

🛒 Buy Now

Order the CNC Shield for Arduino Nano from our Arduino and Accessories collection and start building your custom CNC project today.
