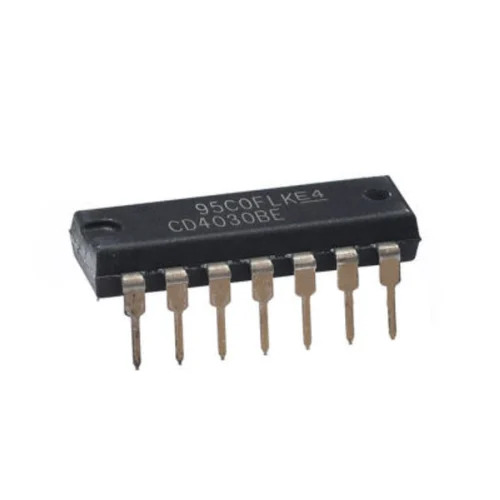

CMOS Logic IC 4030 DIP14

The CD4030 CMOS Quad Exclusive-OR Gate IC contains four independent XOR gates in a single DIP-14 package. Each gate performs the logical XOR function, outputting HIGH when inputs differ. Built with CMOS technology, it ensures low power consumption, wide voltage compatibility, and high noise immunity. Commonly used in digital logic design, parity checking, arithmetic operations, and signal processing applications.

🔹 Applications

• Digital logic design and control circuits

• Parity generator and parity checker circuits

• Arithmetic circuits and ALUs

• Signal processing and error detection

• Robotics, IoT, and embedded systems

• DIY electronics and educational kits

🔹 Precautions

• Do not exceed maximum supply voltage of 18V

• Handle with anti-static protection to avoid ESD damage

• Ensure correct pinout before PCB or breadboard insertion

• Provide proper grounding for stable operation

• Limit soldering heat (<260°C for 10 seconds max)

🔹 Technical Specifications

• IC Type: Quad 2-Input Exclusive-OR (XOR) Gate

• Technology: CMOS

• Package Type: DIP-14

• Number of Gates: 4 XOR gates

• Inputs per Gate: 2

• Supply Voltage Range (VDD): 3V – 15V (Max 18V)

• Typical Operating Voltage: 5V, 10V, or 15V

• Propagation Delay: ~60ns at VDD = 10V

• High-Level Input Voltage: 3.5V (at VDD = 5V)

• Low-Level Input Voltage: 1.5V (at VDD = 5V)

• Power Dissipation: Very low (CMOS standard)

• Operating Temperature Range: -55°C to +125°C

• Pin Count: 14 pins

📹 Tutorial Video

Watch CD4030 XOR Gate IC Tutorial

🔹 Related Categories

• IC’s

• Electronics Components

• Tools and Accessories

🔹 Summary

The CD4030 CMOS Quad 2-Input XOR Gate IC (DIP-14) is a versatile and energy-efficient digital logic IC. With its four XOR gates, wide voltage support, and high noise immunity, it is widely used in digital logic design, parity circuits, error detection, robotics, and embedded projects. A reliable addition to any IC’s collection.
