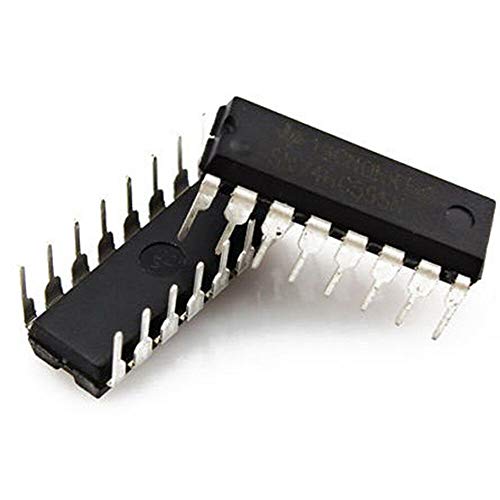

CD4028 CD4028BE 4028 BCD to Decimal Decoder IC
The CD4028BE (also known as 4028 IC) is a high-performance BCD-to-decimal decoder/driver from the CMOS logic family. It is designed to decode a 4-bit binary-coded decimal input (0 to 9) into one of ten active-low or active-high decimal outputs. Outputs 0–9 are uniquely activated depending on the BCD input, while all others remain inactive.
This IC is widely used in digital display systems, such as LED or LCD numerical displays, control panels, and memory addressing schemes in microprocessor and microcontroller systems. It is fully compatible with TTL inputs and operates on a wide supply voltage range (3V to 15V), making it highly flexible for both hobbyist and professional use.
Packaged in a DIP-16 format, the CD4028BE is breadboard-friendly and easy to prototype. You can use it with development platforms like Arduino, Raspberry Pi, or in combination with other ICs and electronic components.
⚙️ Technical Specifications
| Parameter | Details |
|---|---|
| IC Name | CD4028 / CD4028BE |
| Function | BCD to Decimal Decoder |
| Input Type | 4-bit BCD (Binary Coded Decimal) |
| Output Type | 10 mutually exclusive outputs |
| Logic Family | CMOS |
| Package | DIP-16 |
| Operating Voltage Range | 3V to 15V |
| Logic Compatibility | TTL and CMOS |
| Max Input Current | ±1 µA |
| Operating Temperature | -55°C to +125°C |
💡 Use Cases & Applications
-
✅ 7-segment display drivers for numerical output
-
✅ Digital control panels in consumer electronics
-
✅ Memory selection and data routing circuits
-
✅ Input decoding for keypad matrix
-
✅ Microcontroller signal decoding
-
✅ Educational and prototyping projects
🛠️ Related Categories
🎥 YouTube Tutorial
📺 Learn How BCD to Decimal Decoder IC Works:
👉 Watch: CD4028 Decoder Explained with Circuit
⚠️ Precautions
-
Do not exceed 18V power supply to prevent IC damage.
-
Tie unused inputs to ground or Vcc to avoid floating logic levels.
-
Handle with ESD-safe tools and environment for CMOS IC protection.
-
Ensure proper decoupling capacitors for voltage stability during operation.
🛒 Summary
The CD4028BE BCD to Decimal Decoder is an essential logic IC for converting binary inputs to one-hot outputs in many digital applications. Whether you’re building a DIY LED display, learning about digital logic, or developing a complex control circuit, this IC ensures efficient and reliable decoding.
Now available from Electroway — your trusted electronics supplier.
