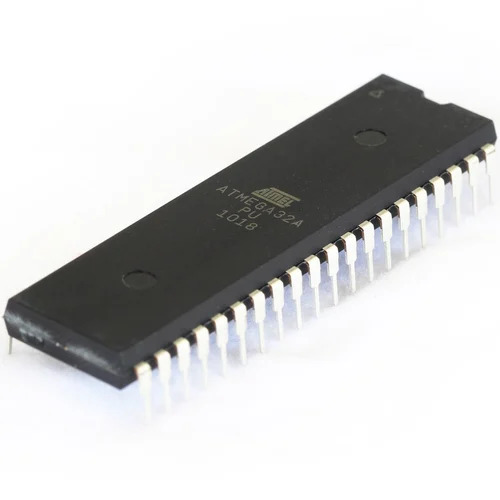

ATMega32A PU MCU 8 BIT ATMEGA
The ATmega32A-PU is a high-performance 8-bit AVR microcontroller by Microchip, engineered for stability, flexibility, and ease of prototyping. Packaged in a DIP-40 through-hole form, it’s perfect for breadboarding, development boards, and standalone controller designs.
Built on RISC architecture, it integrates 32KB of Flash memory, 2KB SRAM, and 1KB EEPROM, allowing efficient handling of programs, runtime data, and non-volatile storage. With a maximum clock speed of 16 MHz, it provides responsive control for both simple and moderately complex applications.
The microcontroller includes 32 general-purpose I/O lines, 8-channel 10-bit ADC, 3 timers, and interfaces like USART, SPI, and I²C (TWI) — making it well-suited for sensor interfacing, communication modules, and real-time control systems.
🛠 Technical Specifications
| Parameter | Details |
|---|---|
| Architecture | 8-bit AVR RISC |
| Operating Voltage | 4.5V – 5.5V |
| Flash Memory | 32KB |
| SRAM | 2KB |
| EEPROM | 1KB |
| Clock Speed (Max) | 16 MHz |
| GPIO Pins | 32 |
| ADC | 8-channel, 10-bit |
| PWM Channels | 4 |
| Timers | 2 x 8-bit, 1 x 16-bit |
| Communication | USART, SPI, I²C (TWI) |
| Package Type | DIP-40 |
| Temperature Range | -40°C to +85°C |
💡 Use Cases & Applications
-
⚙️ Industrial Automation – Used for controlling relays, motors, and sensors in small-scale automation.
-
🤖 Robotics Controllers – Suitable for real-time robotic behavior, PWM motor driving, and logic processing.
-
📟 Educational Microcontroller Training – Ideal for learning embedded C, interfacing sensors, and programming protocols.
-
🔋 Smart Energy Projects – Works with metering, battery charging, and voltage regulation systems.
-
📲 Serial Communication Bridges – Acts as a UART-to-SPI or I²C interface controller in hardware projects.
🛠️ Pair With
🎥 YouTube Tutorial
📺 How to Program ATmega32A Using USBasp & AVRDUDE
👉 Watch Tutorial
⚠️ Precautions & Tips
-
Use decoupling capacitors (0.1µF) near Vcc for stable performance.
-
Always connect the AVCC and AREF pins properly when using the ADC.
-
Consider external crystal oscillator for time-sensitive applications.
-
Ensure RESET pin is pulled high using a 10kΩ resistor during operation.
🏁 Summary & Purchase Info
The ATmega32A-PU stands out for its versatility and ease of use in embedded system development. Whether you’re building control circuits, developing communication modules, or teaching microcontroller architecture — it delivers stability, speed, and storage in a beginner-friendly form factor.
🛒 Order now at Electroway — your source for professional electronics tools and components.
