Analog TDS Sensor Meter SEN0244
The Analog TDS Sensor Meter SEN0244 is a high-performance sensor designed to measure the Total Dissolved Solids (TDS) value of water — an essential indicator of water quality and purity. It is capable of detecting the ionic content in liquid solutions, helping identify contamination levels and water conductivity.
The SEN0244 TDS Sensor converts the analog signal output into a digital reading (via microcontroller), allowing you to monitor water quality in real time. It’s widely used in IoT water monitoring systems, aquariums, hydroponics, and environmental testing projects.

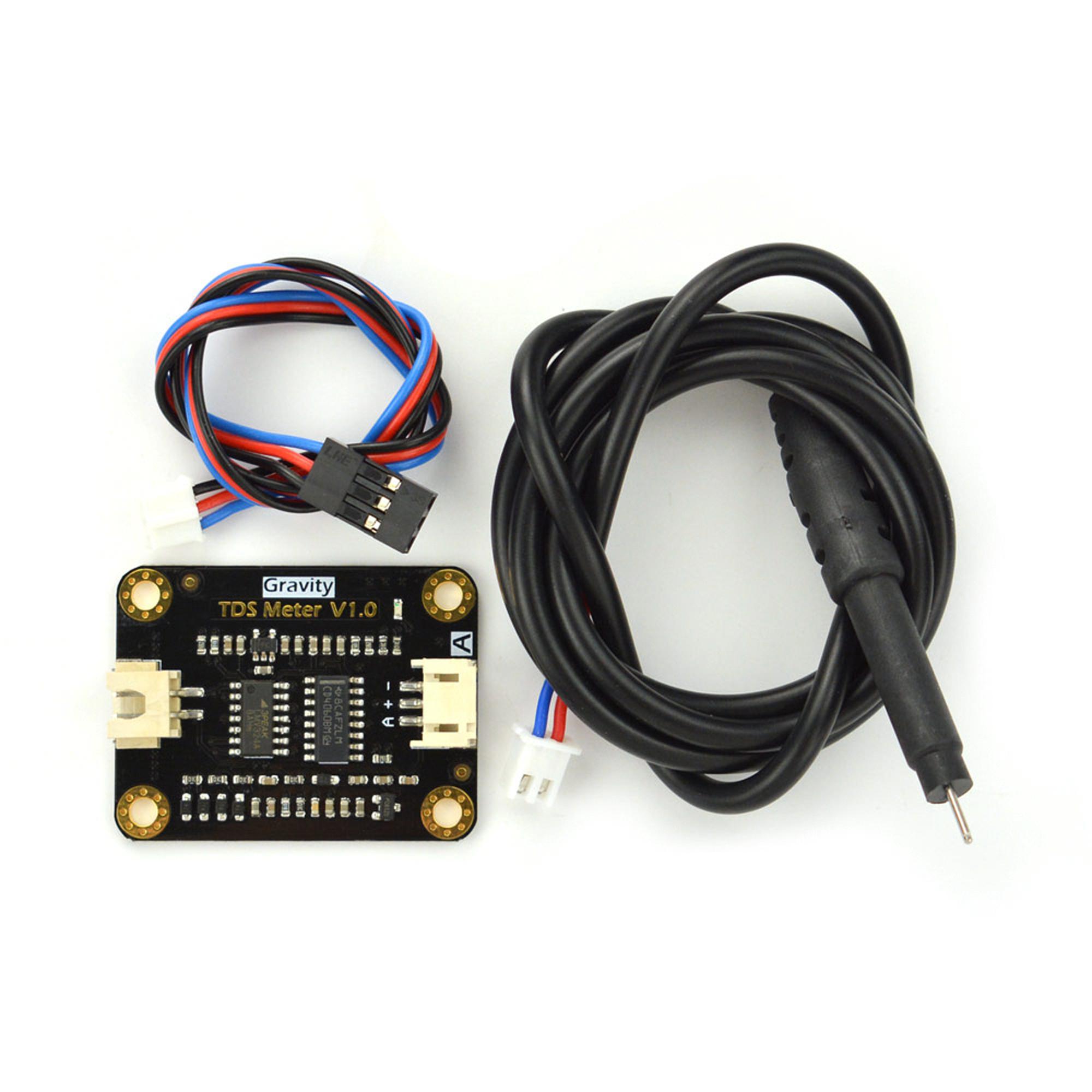

The sensor includes a TDS probe with a waterproof connector and a signal conditioning board, providing accurate and stable measurements across a wide voltage range. It’s compatible with Arduino, Raspberry Pi, NodeMCU, and other microcontroller platforms, making it a reliable component for DIY and industrial automation applications.
⚙️ Key Features & Highlights:
-
💧 Accurate TDS Measurement: Measures total dissolved solids in water for purity evaluation.
-
⚙️ Wide Measurement Range: 0 – 1000 ppm with high stability and resolution.
-
🔌 Analog Output: Simple integration with Arduino Boards and other MCUs.
-
🧩 Detachable Waterproof Probe: Ensures durability and easy maintenance.
-
⚡ Low Power Consumption: Ideal for portable and continuous water monitoring systems.
-
🌡️ Temperature Compensation Support: Ensures accuracy in variable conditions (requires external temperature sensor).
-
🧠 Compact Design: Easy to embed into water quality monitoring devices.
-
💧 Applications: Drinking water analysis, aquariums, hydroponics, and environmental testing.
⚙️ Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | SEN0244 |
| Input Voltage | 3.3V – 5.5V DC |
| Output Type | Analog voltage |
| TDS Measurement Range | 0 – 1000 ppm |
| Accuracy | ±10% F.S. (25°C) |
| Signal Board Dimensions | 42mm × 32mm |
| Probe Length | 60cm |
| Interface Type | PH2.0-3P |
| Operating Temperature | 0°C – 80°C |
| Compatible Boards | Arduino, ESP8266, ESP32, Raspberry Pi |
| Waterproof Probe | Yes |
⚙️ Working Principle:
The Analog TDS Sensor works by measuring the electrical conductivity of water — the higher the ion concentration, the higher the conductivity, and thus the TDS value. The onboard signal conditioning circuit converts this analog voltage into a readable signal for microcontrollers.
By reading this data, users can determine water quality, detect pollution, and control automated purification systems.
⚙️ Applications:
-
💧 Water Purity Monitoring Systems
-
🌱 Hydroponic Nutrient Solution Testing
-
🐠 Aquarium Water Quality Control
-
🧪 Environmental Monitoring Projects
-
🏭 Industrial Water Filtration Systems
-
⚙️ DIY IoT Water Quality Projects
⚙️ Precautions:
-
Do not immerse the signal board in water — only the probe is waterproof.
-
Avoid using in water with high salinity or high temperature beyond specifications.
-
Always calibrate before accurate measurement.
-
Disconnect power before wiring to prevent damage.
▶️ YouTube Tutorial Video:
Watch: How to Interface Analog TDS Sensor SEN0244 with Arduino
🔗 Internal Links:
🔹 Product Summary:
The Analog TDS Sensor Meter SEN0244 is a versatile and accurate tool for measuring Total Dissolved Solids (TDS) in liquids. Its analog output, waterproof probe, and wide compatibility with microcontrollers make it ideal for water purity detection, hydroponics, and IoT-based monitoring systems.
