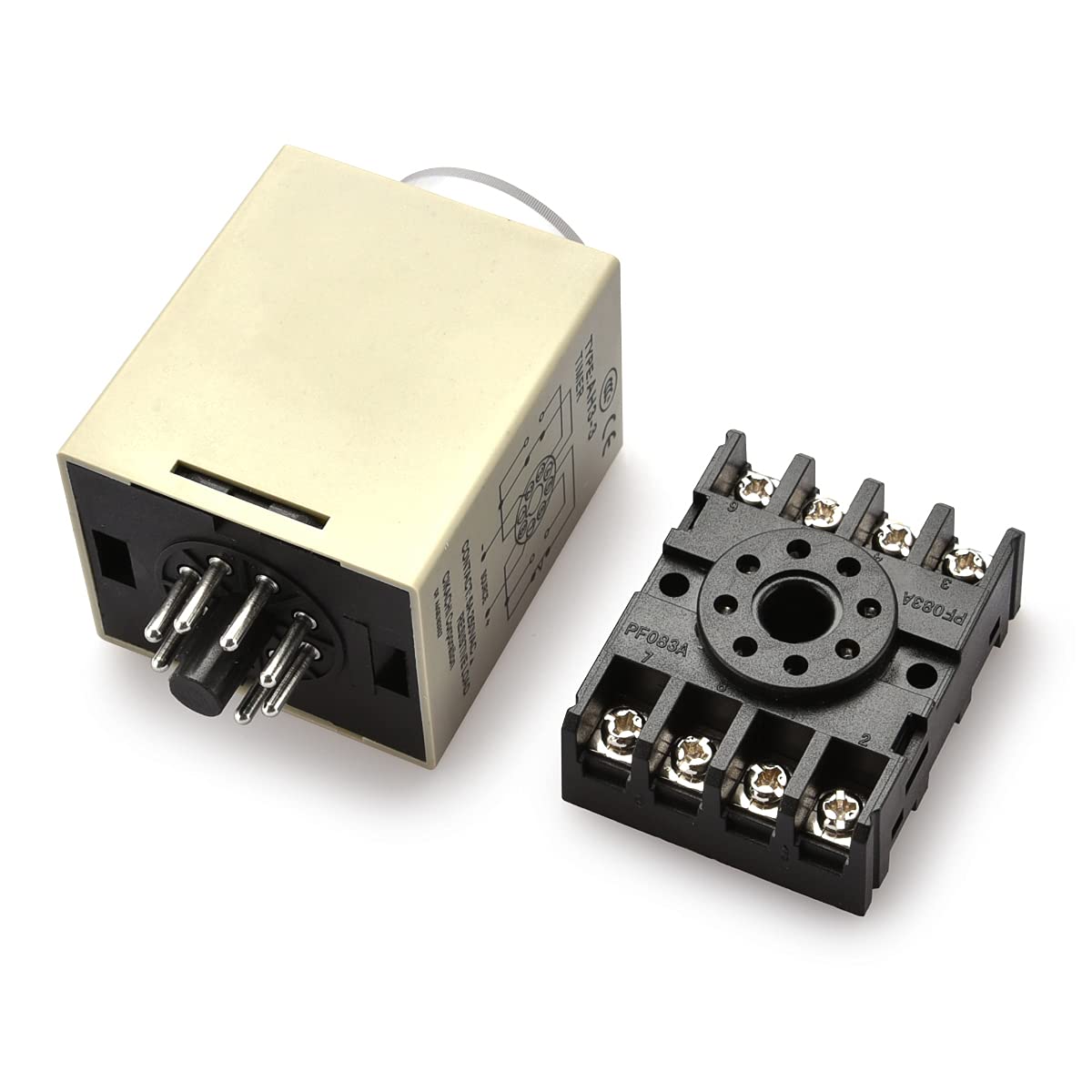

AH3-3 Timer Relay Module with Socket
The AH3-3 Timer Relay Module with Socket is a reliable and adjustable timing device used for delayed switching control in electrical and automation systems. This versatile module allows you to precisely control the ON/OFF delay of electrical devices such as motors, pumps, heaters, lights, and control relays.
Equipped with a durable relay socket, the AH3-3 module ensures easy installation, secure wiring, and stable electrical connections for both AC and DC control systems. Its compact design, combined with multi-voltage compatibility, makes it suitable for a wide range of automation and timing control applications.
This module is widely used in process control systems, industrial automation panels, machine start/stop sequences, and DIY electronics projects involving time-based control.
⚙️ Key Features & Highlights:
-
⏱️ Adjustable Delay Time: Set precise delay from 0.1 seconds up to 10 minutes.
-
⚙️ Multiple Time Ranges: Configurable for different timing scales.
-
🔌 Wide Voltage Options: Available in 12V DC, 24V DC, and 220V AC versions.
-
💡 High Switching Capacity: Capable of handling up to 250VAC/5A loads.
-
🧩 Comes with Socket Base: Ensures easy installation and replacement.
-
🔄 Delay ON / Delay OFF Function: Supports multiple timing operations.
-
⚡ Industrial-Grade Build: High-quality relay contacts for long life and reliability.
-
🔗 Compatible With: Arduino Boards and Power Supply Modules for automation projects.
⚙️ Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | AH3-3 Timer Relay |
| Operating Voltage | 12V DC / 24V DC / 220V AC (depends on model) |
| Timing Range | 0.1 sec to 10 minutes (adjustable) |
| Contact Capacity | 5A @ 250VAC or 30VDC |
| Contact Configuration | SPDT (Single Pole Double Throw) |
| Base Type | 8-pin Socket |
| Power Indicator | LED (ON during operation) |
| Timing Adjustment | Rotary dial on front panel |
| Mounting Type | Socket or panel mount |
| Operating Temperature | -10°C to +60°C |
| Weight | Approx. 150g |
⚙️ Working Principle:
The AH3-3 Timer Relay works by energizing its internal relay after a preset time delay. When power is applied, the internal circuit starts counting based on the selected time range. Once the delay period is reached, the relay output switches ON or OFF depending on configuration.
This allows automation systems to control processes sequentially, delay machine start-ups, or avoid power surges by staggering activations.
⚙️ Applications:
-
🏭 Industrial Automation Control
-
⚙️ Sequential Motor Start/Stop Systems
-
💧 Pump Delay and Protection Circuits
-
💡 Lighting Delay Control
-
🔌 DIY and Home Automation Projects
-
🧠 Arduino and Microcontroller-Based Timing Projects
-
🔄 HVAC Systems and Power Management
⚙️ Precautions:
-
Ensure correct voltage input for the selected model (12V/24V/220V).
-
Avoid short circuits during wiring; always turn off power before connecting.
-
Do not exceed rated load capacity of relay contacts.
-
Keep away from moisture and high humidity areas.
▶️ YouTube Tutorial Video:
Watch: How to Use AH3-3 Timer Relay Module with Socket
🔗 Internal Links:
🔹 Product Summary:
The AH3-3 Timer Relay Module with Socket offers precise, programmable time delay control suitable for automation, industrial, and DIY projects. Its versatile voltage options, robust relay performance, and plug-in socket design make it an essential component for any time-controlled electrical system.
