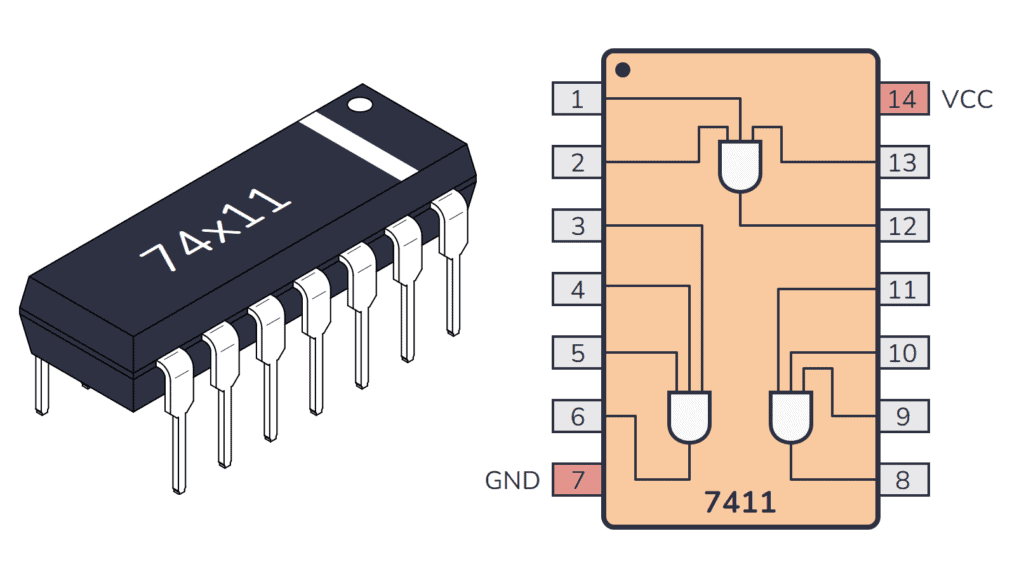

7411 SN74F11N TTL Logic IC

The 7411 SN74F11N IC is a Triple 3-Input Positive AND Gate designed using TTL technology. Each gate performs the logical AND operation on three inputs, outputting HIGH only when all inputs are HIGH. Packaged in a DIP-14, it offers easy integration with breadboards, PCBs, and embedded designs. Its fast switching time and low propagation delay make it a reliable choice for complex logic applications.

🔹 Applications

• Digital circuit design and logic control

• Arithmetic logic units (ALUs)

• Microcontroller and microprocessor interfacing

• Control systems in robotics and automation

• DIY electronics and STEM educational projects

• Signal processing and embedded applications

🔹 Precautions

• Do not exceed 7V supply voltage

• Ensure proper grounding to avoid logic instability

• Protect from ESD damage by careful handling

• Avoid direct output-to-output short circuits

• Follow standard soldering practices (<260°C for max 10s)

🔹 Technical Specifications

• IC Type: Triple 3-Input Positive AND Gate

• Logic Family: 74F (Fast TTL)

• Package: DIP-14

• Number of Gates: 3 AND gates

• Inputs per Gate: 3

• Supply Voltage (Vcc): 4.75V – 5.25V

• Propagation Delay: ~4ns (typical)

• Fan-out: 20 LS-TTL loads

• Input Current: ±1µA max

• Power Dissipation: Low (TTL standard)

• Operating Temperature: 0°C to +70°C

• Pin Count: 14 pins

📹 Tutorial Video

Watch 7411 AND Gate IC Tutorial

🔹 Related Categories

• IC’s

• Electronics Components

• Tools and Accessories

🔹 Summary

The 7411 SN74F11N Triple 3-Input Positive AND Gate IC (DIP-14) is a reliable and high-speed logic device for digital circuits, embedded systems, and robotics projects. With three independent AND gates in one package, it provides flexibility and performance for logic operations in DIY projects, industrial controllers, and educational electronics. A must-have addition to every IC’s toolkit.
