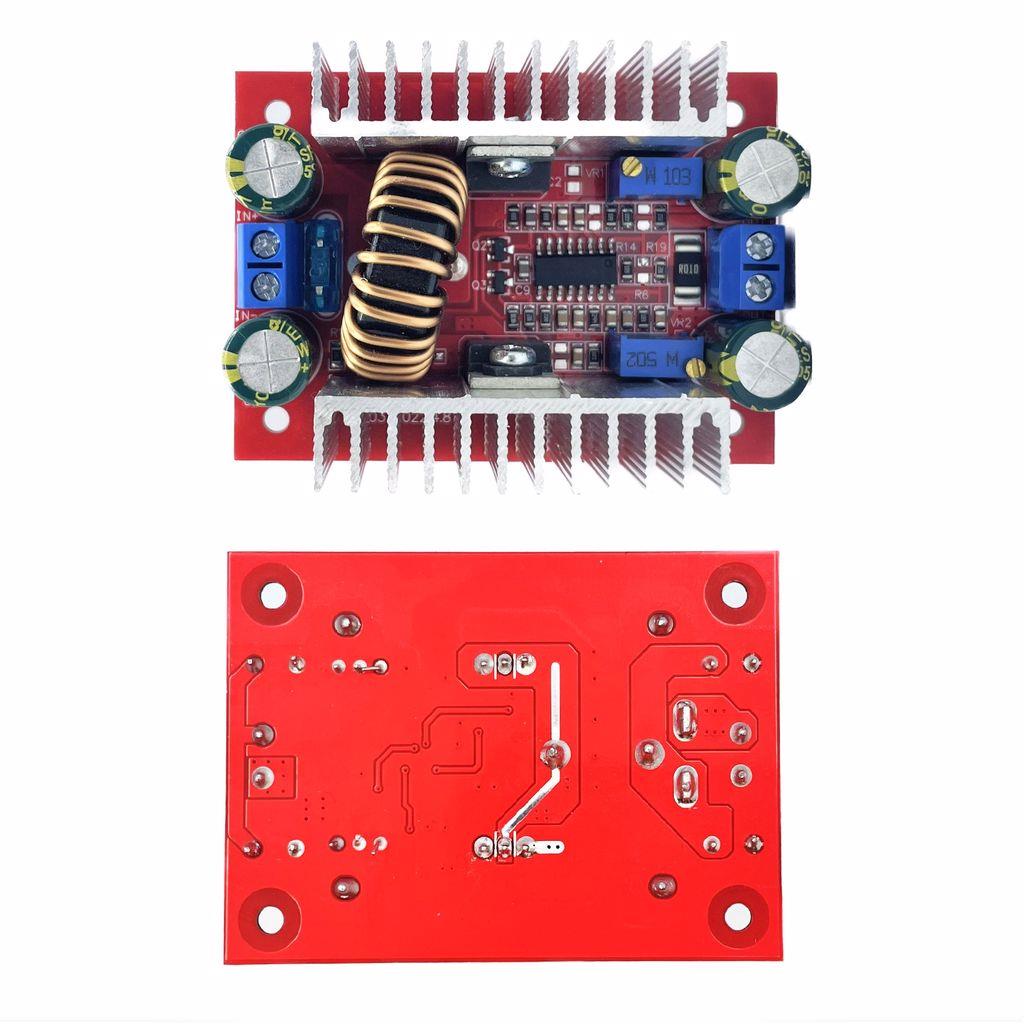

400 W 15 A 10–60 V DC-DC Step-Up Converter

The 400 W 15 A 10–60 V DC-DC Step-Up Converter is a robust high-current power supply module that efficiently increases lower DC voltages to a higher, stable output. Designed for demanding applications, it provides up to 400 W output power and 15 A peak current, making it ideal for solar energy systems, electric vehicles, battery charging, LED lighting, and industrial automation.

🔹 Key Features

• Wide Input Range: Accepts 10 V–60 V DC, compatible with batteries, solar panels, or low-voltage supplies.

• Adjustable Output Voltage: 12 V–80 V DC via precision potentiometer.

• High Power Output: Delivers 400 W continuous (with adequate cooling) and up to 15 A peak current.

• Excellent Efficiency: Up to 96% conversion efficiency reduces heat and energy loss.

• Integrated Protections: Overcurrent, thermal, and short-circuit protection for safe long-term operation.

• Rugged Design: Thick PCB and large heat sinks for stable performance under heavy loads.

🔹 Technical Specifications

• Input Voltage: 10 V–60 V DC

• Output Voltage: 12 V–80 V DC (adjustable)

• Continuous Output Current: 6 A–10 A (up to 15 A peak with active cooling)

• Maximum Output Power: Up to 400 W (with proper heat dissipation)

• Conversion Efficiency: Up to 96% (varies by load and input/output ratio)

• Switching Frequency: ~150 kHz

• Operating Temperature: –20 °C to +85 °C (with adequate airflow)

• Module Size: Approx. 70 mm × 130 mm × 40 mm

🔹 Applications & Use Cases

• DIY Solar Power Systems: Boost solar panel voltage for charging higher-voltage battery banks.

• Battery-Powered Devices: Step up 12 V or 24 V battery packs for 48 V or higher equipment.

• High-Power LED Drivers: Provide stable voltage for large LED arrays or lighting installations.

• Arduino & Raspberry Pi Projects: Power motors, sensors, or controllers needing high-voltage supply.

• Robotics & Electric Vehicles: Supply high-torque motors and controllers from lower-voltage sources.

🔹 Advantages for Makers & Engineers

         Simple integration with Arduino boards or Raspberry Pi.

• Combines easily with other Electronics Components for custom energy solutions.

• High power and efficiency suited for industrial and IoT applications.

🔹 Safety & Precautions

• Use a regulated input power source and never exceed 15 A without proper cooling.

• Install a large heat sink or active cooling fan for continuous high-load operation.

• Observe correct input/output polarity to avoid damage.

• Keep module away from conductive surfaces to prevent short circuits.

🔗 Helpful Internal Links

• Explore more Power Supplies for your projects.

• Discover additional Electronics Components for energy systems.

• Find assembly gear in Tools and Accessories.

🎥 Video Tutorial

[YouTube tutorial link here]

📝 Product Summary

The 400 W 15 A 10–60 V DC-DC Step-Up Converter provides a high-efficiency power boost from low-voltage DC sources to a 12–80 V adjustable output, making it perfect for solar energy setups, battery charging, LED lighting, robotics, and industrial applications.
