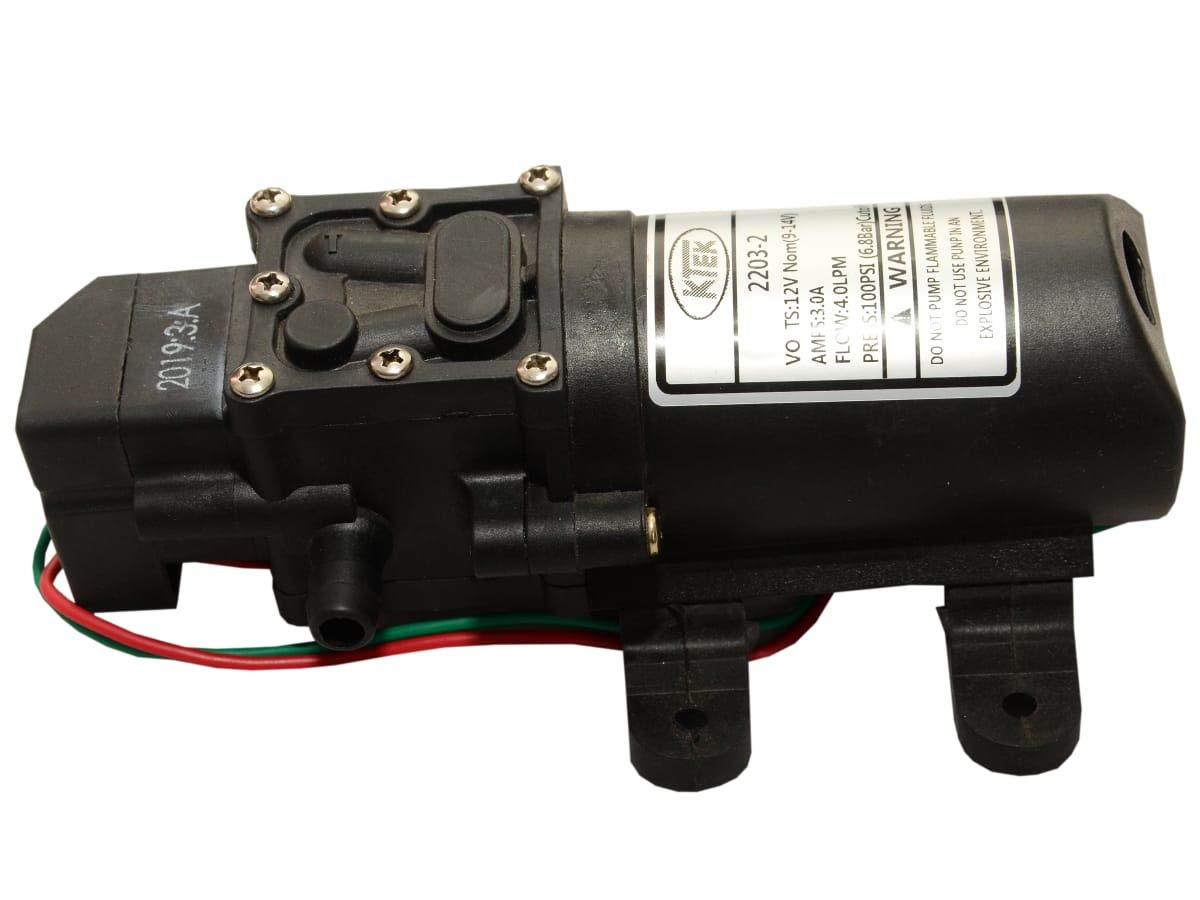

12V 80W High Pressure Water Pump (2 in 1)
The 12V 80W High Pressure Water Pump (2 in 1) is a self-priming diaphragm pump that combines high efficiency, compact size, and durable performance for continuous water transfer and spraying applications. It runs on 12V DC power, making it compatible with Arduino, automotive batteries, and solar-powered systems.
Built with high-quality materials and a reliable diaphragm design, this pump delivers stable pressure up to 130 PSI, suitable for both industrial and home automation projects.
⚙️ Key Features
-
Rated Voltage: 12 V DC
-
Power Consumption: 80 W
-
Max Pressure: 0.9 MPa (≈130 PSI)
-
Flow Rate: Up to 5 L/min
-
Self-Priming Function: Can lift water up to 3 m vertically
-
Automatic Stop Function: Cuts off automatically when outlet is closed
-
Pump Type: Diaphragm, 2 in 1 inlet/outlet design
-
Material: Engineering plastic body with rubber sealing and copper motor core
-
Operating Mode: Continuous or intermittent duty
-
Noise Level: ≤55 dB (low noise operation)
📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 12V 80W High Pressure Pump |
| Voltage | 12 V DC |
| Power | 80 W |
| Max Current | 6–7 A |
| Max Pressure | 0.9 MPa (130 PSI) |
| Max Flow Rate | 5 L/min |
| Suction Height | ≤3 m |
| Head Height | ≤10 m |
| Inlet/Outlet Size | 10 mm (3/8”) |
| Material | Plastic, Metal, Rubber |
| Dimensions | ~160 mm × 100 mm × 60 mm |
| Weight | ≈700 g |
🧰 Applications
-
Car Washing & Mobile Cleaning Systems
-
Garden Watering and Irrigation
-
Portable Shower Systems
-
DIY Sprinkler or Mist Cooling Projects
-
Aquarium Water Circulation Systems
-
Water Supply Automation with Arduino or IoT controllers
-
Liquid Transfer Systems for farms and greenhouses
⚠️ Precautions
-
Always connect to a regulated 12 V DC Power Supply rated for 7–10 A.
-
Do not run the pump dry (without water) for extended periods.
-
Avoid pumping corrosive or flammable liquids.
-
Install a filter before the inlet to prevent debris damage.
-
Mount securely and ensure proper ventilation for cooling.
🧩 Recommended Accessories
-
Water Tubing and Connectors – available in Tools and Accessories
-
Relay or MOSFET Modules – for controlling the pump with Arduino
-
Electronics Components for automation circuits
-
Flow Sensors or Water Level Sensors for feedback control
▶️ YouTube Tutorial Video
🎥 Watch: 12V 80W High Pressure Water Pump Wiring & Performance Test
Learn how to wire, test, and control your 12V DC water pump with an Arduino automation setup or a simple switch system.
📝 Product Summary
The 12V 80W DC High Pressure Water Pump 2 in 1 is a versatile, powerful, and compact self-priming pump suitable for car washing, irrigation, and DIY automation projects. With a maximum pressure of 130 PSI, automatic shut-off, and reliable diaphragm technology, it’s ideal for any Arduino-based or IoT liquid control system.
Perfect for DIY engineers, makers, and automation enthusiasts in Pakistan looking for an affordable and efficient water pumping solution.
